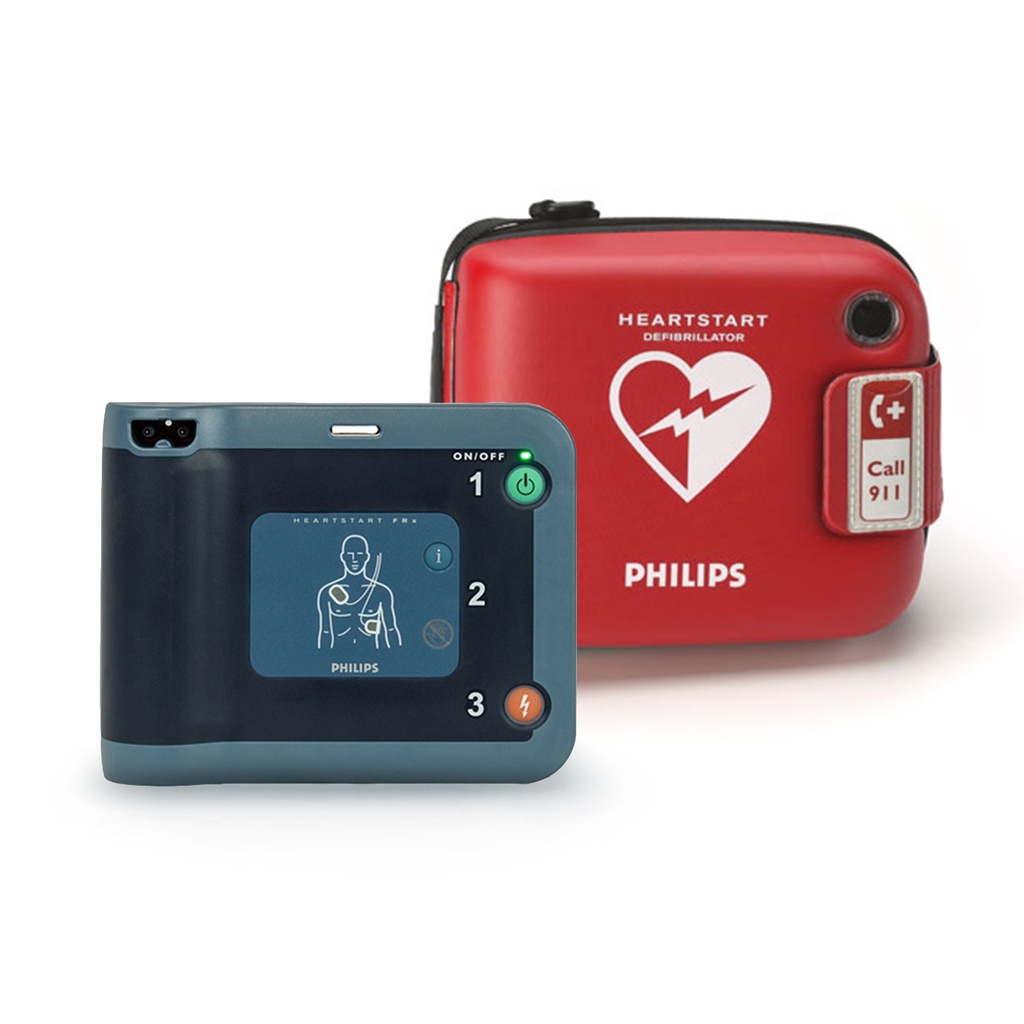

Philips Heartstart FRx AED
This product is also in these categories:
Product Information:
- Products Model: 7861304
- Product Brand: DRE Medical
- Condition: New
- Warranty: Satisfaction Guaranteed
The HeartStart FRx delivers patient-impedance-adjusted biphasic shocks through preconnected SMART Pads, eliminating the setup delays that cost critical seconds during cardiac arrest events. Unlike basic AEDs that use fixed energy levels, this unit automatically calibrates waveform parameters based on patient impedance for more effective defibrillation.
Built-in CPR coaching walks responders through compression timing and depth, while automated voice prompts guide users through each step without requiring manual navigation. The infrared data port transmits event data wirelessly for immediate clinical review and quality improvement tracking. Worth noting: the Infant/Child Key switches to pediatric mode with a single turn, dropping energy to 50 joules and adjusting pad placement guidance.
Key Features
- Preconnected SMART Pads II for rapid application to adults and children
- SMART Biphasic waveform with patient-impedance-adjusted parameters
- Automated voice prompts, visual icons, and HeartStart CPR Coaching
- Infant/Child Key for pediatric mode with adjusted pad placement and reduced energy
- Automated daily, weekly and monthly self-tests with blinking green READY indicator
- Infrared data port for wireless event-data transmission
Specifications
| Contents | |
|---|---|
| How Supplied | Defibrillator, battery (1), SMART Pads II (1 set), Owner Manual, Quick Reference Guide |
| Waveform | |
| Type | Truncated Exponential Biphasic |
| Waveform Parameters | Adjusted as a function of patient impedance |
| Energy | |
| Adult | Nominal 150 Joules into a 50-ohm load |
| Infant/Child | Nominal 50 Joules into a 50-ohm load |
| Patient Analysis | |
| Function | Evaluates ECG to determine if rhythm is shockable (VF and certain VT) |
| Sensitivity/Specificity | Meets AAMI DF80 guidelines and AHA recommendations |
| Quick Shock | Deliverable after CPR pause, typically in eight seconds |
| Battery | |
| Item Number | M5070A (standard) |
| Type | 9 Volt DC, 4.2 Ah, lithium manganese dioxide, disposable primary cell |
| Capacity | Minimum 200 shocks or 4 hours operating time |
| Standby Life | Four years typical when installed by install-by date |
| SMART Pads II | |
| Item Number | 989803139261 |
| Active Surface Area | 2.4 in² (80 cm²) each |
| Cable Length | 48 inches (121.9 cm) |
| How Supplied | Disposable pads case with HeartStart plug-style connector |
| Use-By-Date | Labeled at least two years from manufacture |
| Physical | |
| Height | 2.4 inches (6 cm) |
| Width | 8.9 inches (22 cm) |
| Depth | 7.1 inches (18 cm) |
| Weight | 3.5 lbs (1.5 kg) with battery and pads case; 2.6 lbs (1.2 kg) without |
| Environmental | |
| Sealing | Waterjet proof IPX5 per IEC60529; Dust protected IP5X per IEC60529 |
| Temperature | Operating/Standby: 32° – 122°F (0° – 50°C) |
| Altitude | 0 to 15,000 feet |
| Crush | 500 pounds |
| Vibration | Meets MIL-STD 810F requirements for operating and standby |
| Aircraft | RTCA/DO-160D;1997 |
| Indicators & Controls | |
| Controls | Green on/off button, blue i-button, orange shock button, optional Infant/Child Key |
| Indicators | Ready light, caution light, illuminated pads, icons, shock button lights when shock is advised |
| Data Recording & Transmission | |
| Infrared | IrDA wireless transmission of event data |
| Data Stored | First 15 minutes of ECG and the entire incident’s events and analysis decisions |
| Model | |
| Philips Model Number | 861304 |
