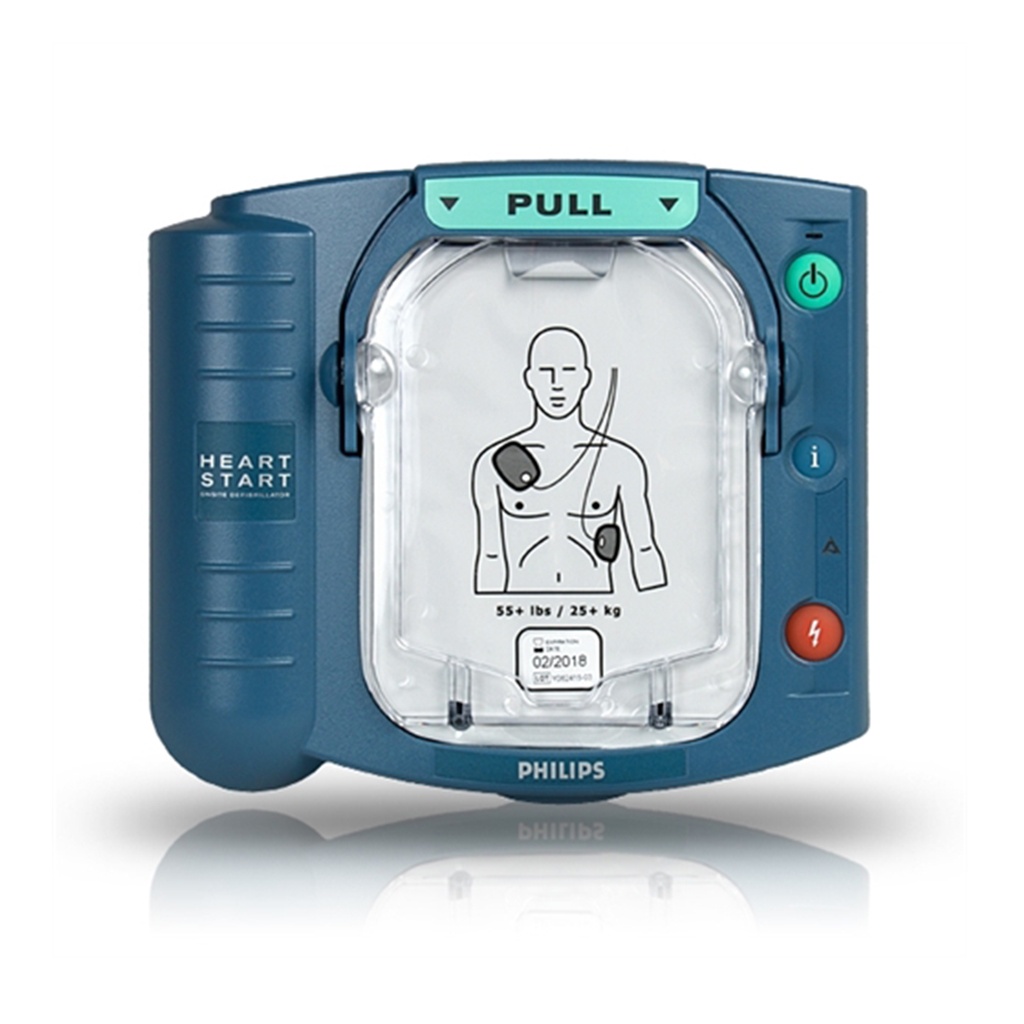

Philips Heartstart Onsite AED
This product is also in these categories:
Product Information:
- Products Model: 75066AU
- Product Brand: DRE Medical
- Condition: Factory Refurbished
- Warranty: Satisfaction Guaranteed
The Philips HeartStart OnSite delivers SMART Biphasic therapy that automatically adjusts waveform parameters based on patient impedance, providing optimized energy delivery for adults (150J) and pediatric patients (50J) through interchangeable pad cartridges. Unlike basic AEDs that offer generic shock protocols, this unit analyzes individual patient characteristics to customize treatment.
Daily automated self-tests monitor both battery and pad integrity, tracking readiness status without manual intervention. The internal event memory captures complete incident data and generates verbal EMS summaries through the integrated i-button interface. Worth noting: the voice-guided CPR coaching provides real-time feedback between shocks, supporting rescuers through the entire emergency response sequence.
Key Features
- SMART Biphasic waveform with impedance-based parameter adjustment
- Interchangeable pad cartridges for adult, infant/child, and training applications
- Automatic daily self-diagnostics for battery and pad status
- Voice-guided operation with paced CPR coaching
- Internal event memory with i-button EMS summary capability
- Lightweight portable design for rapid deployment
Specifications
| Contents | |
|---|---|
| How Supplied | Defibrillator, Owner’s Manual, battery, 1 adult SMART Pads cartridge, Quick Reference Guide, Quick Start poster |
| Waveform | |
| Type | Truncated Exponential Biphasic |
| Adjustment | Waveform parameters adjusted as a function of patient impedance |
| Energy | |
| Adult | Nominal 150 Joules into a 50 ohm load |
| Infant/Child | Nominal 50 Joules into a 50 ohm load |
| Output | Single energy output; automatically set based on SMART Pads cartridge installed |
| Performance | |
| Shock-to-Shock Cycle Time | Typically < 20 seconds between shocks in a series |
| Quick Shock | Typically delivers shock after CPR interval in ~8 seconds |
| Patient Analysis | |
| Function | Evaluates ECG to determine shockable rhythms (VF and certain VT) |
| Sensitivity/Specificity | Meets AAMI DF80 guidelines and AHA recommendations for adult defibrillation |
| Artifact Detection | Minimizes effects of pacemaker artifact and electrical noise |
| SMART Pads | |
| Adult Pads | M5071A for patients ≥8 years or ≥55 lbs (25 kg) |
| Infant/Child Pads | M5072A for patients <8 years or <55 lbs (25 kg) |
| Training Pads | M5073A (adult), M5074A (infant/child); disable energy delivery and provide training scripts |
| Battery | |

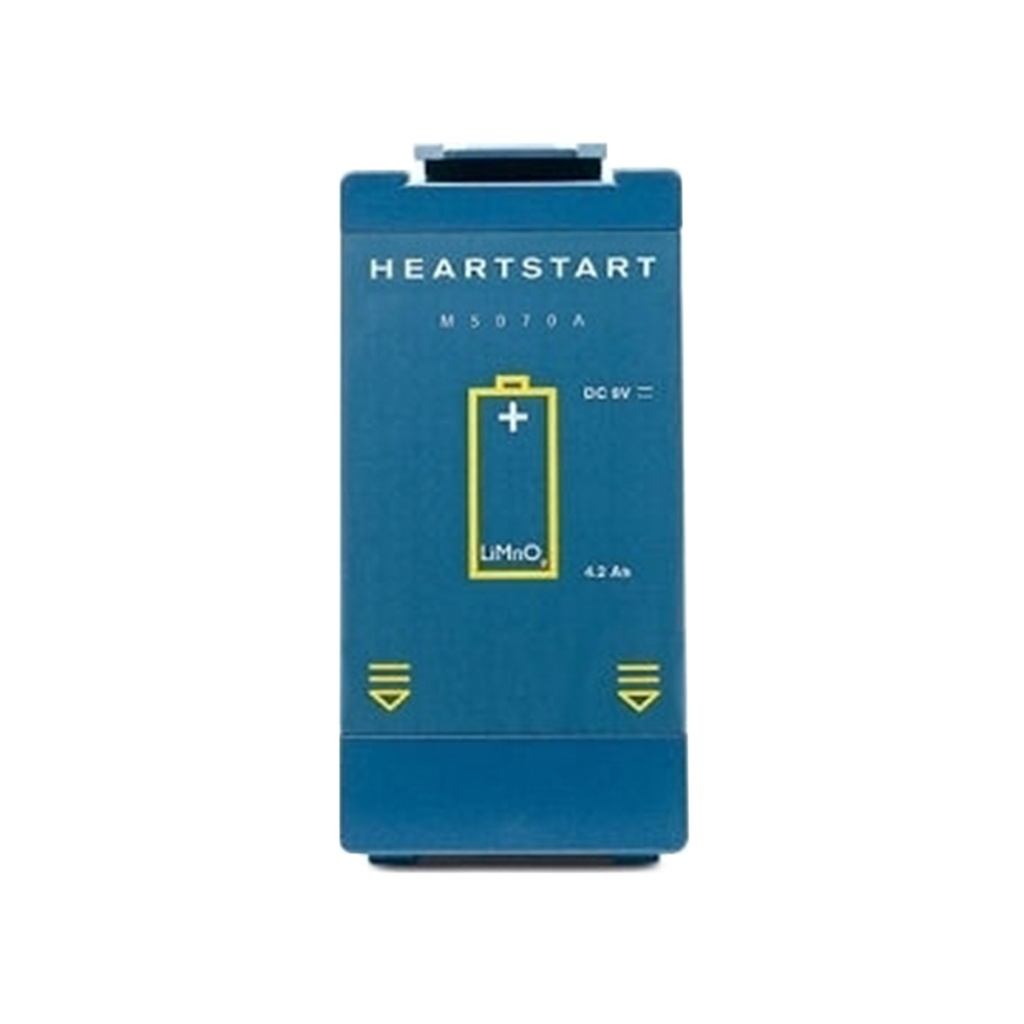

| Type | Disposable long-life lithium manganese dioxide primary cells (M5070A) |
| Capacity | Minimum 200 shocks or 4 hours operating time (per EN 60601-2-4:2003) |
| Standby Life | Four years typical when installed by install-by date |
| Environmental / Physical | |
| Height | 2.8 in (7 cm) |
| Width | 8.3 in (21 cm) |
| Depth | 7.4 in (19 cm) |
| Weight | 3.3 lbs (1.5 kg) with battery and pads case; 2.4 lbs (1 kg) without |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Standby Temperature | 50° to 109°F (10° to 43°C) |
| Humidity Operating | 0% to 95% relative, non-condensing |
| Humidity Standby | 0% to 75% relative, non-condensing |
| Altitude Operating | 0 to 15,000 feet |
| Altitude Standby | 0 to 8,500 feet (>48 hours) and 8,500 to 15,000 feet (<48 hours) |
| Sealing | EN60529 IP2X (solid objects), IPX1 (drip-proof) |
| Shock/Drop | Withstands 1 meter drop to any edge, corner, or surface |
| Vibration | Meets EN1789 road ambulance specification |
| EMI | Meets EN55011 Group 1 Level B Class B and EN61000-4-3 |
| Self-tests | |
| Daily Automatic Self-tests | Tests internal circuitry, waveform delivery system, pads cartridge, and battery capacity |
| Pads Integrity Test | Tests gel moisture/readiness-for-use |
| Battery Insertion Test | Automatic self-tests and user-interactive check upon battery insertion |
| Status Indicator | Blinking green “Ready” light; audible chirp indicates need for maintenance |
| Data | |
| Data Stored | First 15 minutes of ECG and entire incident events and analysis decisions |
| Transmission | Infrared (IrDA) wireless transmission to PC or PDA |
| Intended Use | |
| Applications | Automated external defibrillation for adults, children, and infants when correct SMART Pads cartridge is installed |
