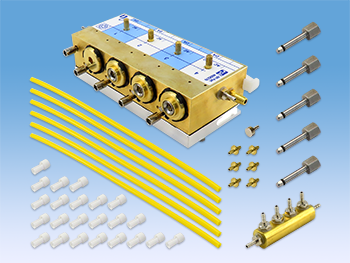

Handpiece Control Block for Delivery Units (4 Position)

RPI Part #ADK276
OEM Part #38.1933.00 (Version 2)

HANDPIECE CONTROL BLOCK

• Version 2 (4 Position) design
• Material: Brass/Aluminum
• See Notes below for parts included in the handpiece control block

Fits: Delivery Units (4 Position) Models: 532A, 533A, 542

Notes:

Includes:

• (23 pcs) Uni-Clamp (RPI Part #ADC034),
• (6 pcs) Barb Inline (RPI Part #ADB014),
• (6.5" lg.) tubing (1/16" ID x 1/8" OD Yellow/Red),
• (1 pkg) Stem Adjustment Tool (RPI Part #ADT242),
• Stem (Air Coolant) (RPI Part #ADS234),
• (3) Water Cartridge Assembly (RPI Part #ADC287),
• Water Cartridge Assembly Dry (RPI Part #ADC288),
• (4) Stem Cartridge (Hex) (RPI Part #ADC286),
• (4) Stem (Drive Air) (RPI Part #ADS235),
• Diaphragm (RPI Part #ADD238),
• Barb Retainer (RPI Part #ADR239),
• (1 pc) Barb (Restrictor) (RPI Part #ADB231),
• (1 pc) Barb (RPI Part #ADB011),
• (14 pcs) Barb (RPI Part #ADB012),
• (1 pc) Barb (RPI Part #ADB230),
• (1 pc) Hex Plug (RPI Part #ADP057),
• (1 pc) Barb Tubing Plug (RPI Part #ADB016),
• (9 pcs) Socket HEad Cap Screw (RPI Part #RPH740),
• (19 pcs) Flat Washer (RPI Part #ADW038)

Also available:

• Quick Disconnect Plug (RPI Part #ADP232),
• Quick Disconnect Barb (RPI Part #ADB248),
• Quick Disconnect Barb (RPI Part #ADB249),
• Quick Disconnect Barb (RPI Part #ADB250),
• Quick Disconnect Barb (RPI Part #ADB251),
• Replacement Stem (Water Flow Adj.) (RPI Part #ADS233) for the stem cartridge
• Handpiece Control Block (RPI Part #ADK284) to fit the 500 Series (38.1972.00)
