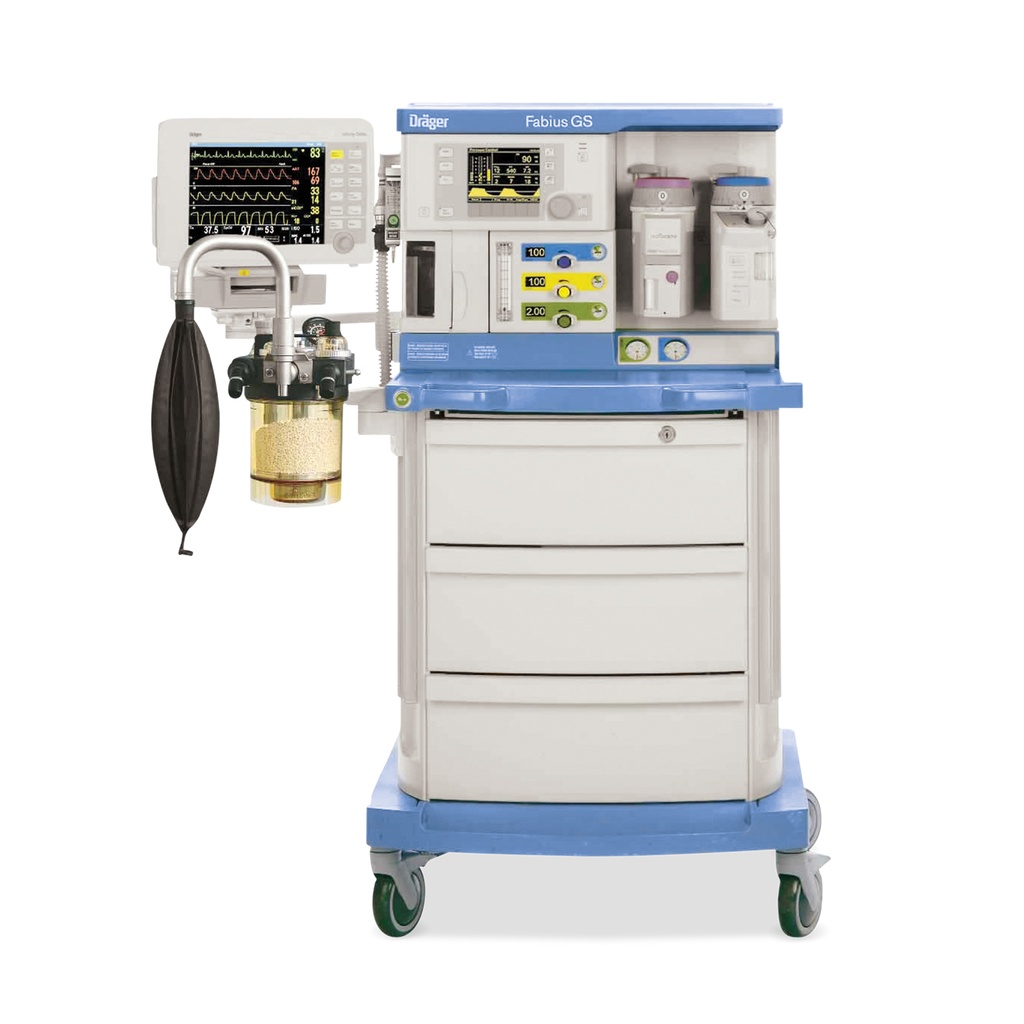

Drager Fabius GS
This product is also in these categories:
Product Information:
- Products Model: 0603FRS
- Product Brand: DRE Medical
- Condition: Factory Refurbished
- Warranty: Satisfaction Guaranteed
The Drager Fabius GS runs its E-vent ventilator entirely on electricity, which means no drive gas requirements and more consistent performance than pneumatic systems. You’ll get five ventilation modes spanning volume control through pressure support, with electronic flow measurement that gives you real-time feedback on gas delivery.
The vertical flow controls pair with electronic indicators so you can compare gas flows at a glance without doing mental math. Worth noting: the system integrates directly with Infinity monitoring platforms and supports the Pick and Go transport concept for moving between ORs. The automatic N2O cut-off kicks in when O2 pressure drops, and you’ll get both audio and visual alerts for low oxygen conditions.
The COSY breathing system adjusts for height and removes completely for cleaning. Bottom line: this covers pediatric through adult cases with backup battery power that runs both ventilator and monitoring for over 45 minutes.
Key Features
- Electrically driven E-vent ventilator requiring no drive gas
- Five ventilation modes including Volume Control, Pressure Control, and SIMV with PS
- Electronic fresh gas flow indicators with vertical controls for intuitive comparison
- Height-adjustable, removable COSY breathing system
- Infinity monitoring compatibility with Pick and Go transport capability
- Automatic N2O cut-off with low O2 pressure alarms
Specifications
| General | |
|---|---|
| Height | 51.2 inches (130 cm) |
| Width | 35.2 inches (89.5 cm) |
| Depth | 32.3 inches (82 cm) |
| Weight | 224 lbs (101.6 kg) (base unit without vaporizers or cylinders) |
| Power Supply | 100-240 VAC, 50/60 Hz, 2.3 A max. |
| Battery | > 45 min (supports ventilator and monitor) |
| Ventilator | |
| Type | E-vent, electronically controlled, electrically driven |
| Breathing Frequency | 4 to 60 bpm |
| Max. Minute Volume | 25 L/min |
| Tidal Volume | 20-1400 mL (Volume Control); 20-1100 mL (SIMV/PS) |
| PEEP | 0-20 cmH2O |
| Pressure Limiting (Pmax) | 15-70 cmH2O |
| Inspiratory Flow | 10-75 L/min (Volume/Pressure Control); 10-85 L/min (Pressure Support) |
| Pressure Support Level | PEEP + 3 to 20 cmH2O |
| Trigger | 2-15 L/min |
| Min. Frequency for Apnea-Ventilation | 3-20 bpm and OFF |
| Gas & Flow | |
| Total Fresh Gas Flow Meter | 0 to 10 L/min (calibrated with 50% O2 / 50% N2O) |
| Range of Fresh Gas Flow Indicators | 0.00 to 12.0 L/min |
| O2 Flush | at 87 psi (6 bar): max. 75 L/min; at 41 psi (2.8 bar): min. 25 L/min |
| N2O Cut-Off | activates if O2 fresh gas valve is closed or O2 flow < 0.2 L/min |
| O2 Safety | Sensitive Oxygen Ratio Controller (S-ORC) guarantees minimum O2 concentration of 23% in O2/N2O mixture |
| Breathing System & Consumables | |
| Volume of CO2 Absorber | 1.5 Liter (option: CLIC adsorber) |
| Volume of Entire Compact Breathing System | 2.8 Liter + bag |
| Vaporizer Mount | Drager or SelectatecR mount |
| Monitoring & Data | |
| Monitored Parameters | Inspiratory O2 concentration, breathing frequency, tidal volume, minute volume, mean/plateau pressure, peak airway pressure, PEEP |
| Data Available for Export | All fresh gas flow, ventilation and O2 data |
| Serial Interface | 1 x RS 232 (standard), 1 x RS 232 (option) |
| Protocols | Vitalink and Medibus |
| Operating Modes | |
| Standard | Manual/Spontaneous, Volume Control (IPPV) |
| Options | Pressure Control (PCV), Pressure Support (PS), SIMV/PS |
| Safety & Pressure Relief | |
| Positive Pressure Relief Valve | opens at 75 ± 5 cmH2O |
| Negative Pressure Relief Valve | opens at -7.5 to -9 cmH2O |
| Alarm for Low O2 Pressure | audible and flashing red LED when O2 pressure drops below 20 psi (1.38 bar) ± 4 psi (0.27 bar) |
| Materials | |
| Construction | Stainless Steel |
| Intended Use | |
| Settings | Operating Room; Ambulatory Surgery Center; other surgical care environments |
