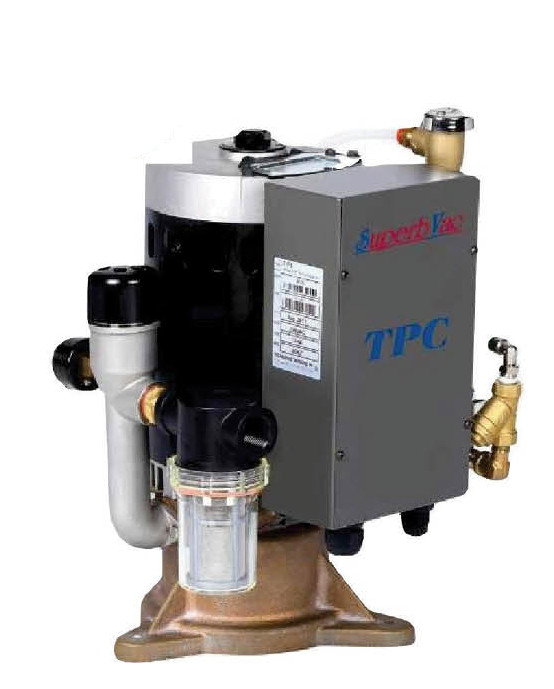

Superb Vac Wet Ring Vacuum, Single Head, 1 x 1.2 HP motor, 3 User (115V/60HZ)
This product is also in these categories:
Product Information:
- Products Model: WV3
- Product Brand: TPC
- Condition: New
Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here. The shipping cost provided is an estimate. Actual shipping and handling costs may vary based on the destination, logistics, supply chain challenges, and other shipment requirements. The actual shipping cost will be added to the final invoice.
The TPC Superb Vac wet ring vacuum pump offers a quiet operation for small to medium size dental practices. Our twin TPC Superb Vac wet ring vacuum pump provides vacuum suction when operating in peak work periods. The twin pump offers back-up protection to minimize downtime and costly interruption to work flow.
Features:
- Durable Aluminum-bronze construction
- Stainless steel impeller
- Computer balanced, sealed bearings in motor
- Large capacity, easy to clean filter with clear bowl for easy inspection
- Available in single and twin models to accomodate 1-10 users
- 5-year full product limited warranty
- Unique water recycling to save up to 80% water
- UL/CUL classified
- 110V or 220V 50/60 Hz
- 2 3/8" air exhaust connection size
- 20 Amp circuit breaker
- Noise level less than
- Noise level less than
- 3/8" city water connection
- 3/4" inlet connection
- NFPA 99C level 3-compliant
| Feature | WV3 (Single) | WV5 (Single) | WV6 (Twin) | WV10 (Twin) |
|---|---|---|---|---|
| Water Consumption (Without Recycling) | 4 L/min | 4 L/min | 6 L/min | 6 L/min |
| Water Consumption (With Recycling) | 0.8 L/min | 1.0 L/min | 1.0 L/min | 1.0 L/min |
| Suction Rate | 900 L/min | 1500 L/min | 1800 L/min | 3000 L/min |
| Vacuum Level (mmHg) | Factory set to 10 | 8-15 | 8-15 | 8-15 |
| Noise Level (dB(A)) | 58 | 58 | 65 | 65 |
| Horsepower | 1.2 HP | 2 HP | 2.4 HP | 4 HP |
| Voltage | 110V or 220V | 220V | 220V | 220V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Max Users | 3 | 5 | 6 | 10 |
| Current (A) | 8A | 13A | 8A x 2 | 13A x 2 |
| Circuit Breaker | 20A | 20A | 20A x 2 | 20A x 2 |
| Inlet Connection Size | 3/4" | 3/4" | 1" | 1" |
| Drain Connection Size | 1.25" | 1.25" | 1.25" | 1.25" |
| City Water Connection Size | 3/8" | 3/8" | 3/8" | 3/8" |
| Air Exhaust Connection Size | 2 x 3/8" | 2 x 3/8" | 2 x 3/8" | 2 x 3/8" |
| Inlet Water Pressure (PSI) | 10 PSI / 0.7 bar | 10 PSI / 0.7 bar | 10 PSI / 0.7 bar | 10 PSI / 0.7 bar |
| Ambient Temperature | 2 °C - 40 °C | 2 °C - 40 °C | 2 °C - 40 °C | 2 °C - 40 °C |
| Product Size (L x W x H) | 16.5" x 14" x 18" | 16.5" x 14" x 18" | 28" x 17" x 18" | 28" x 17" x 18" |
| Product Weight (lbs) | 62 lbs | 66 lbs | 176 lbs | 198 lbs |
