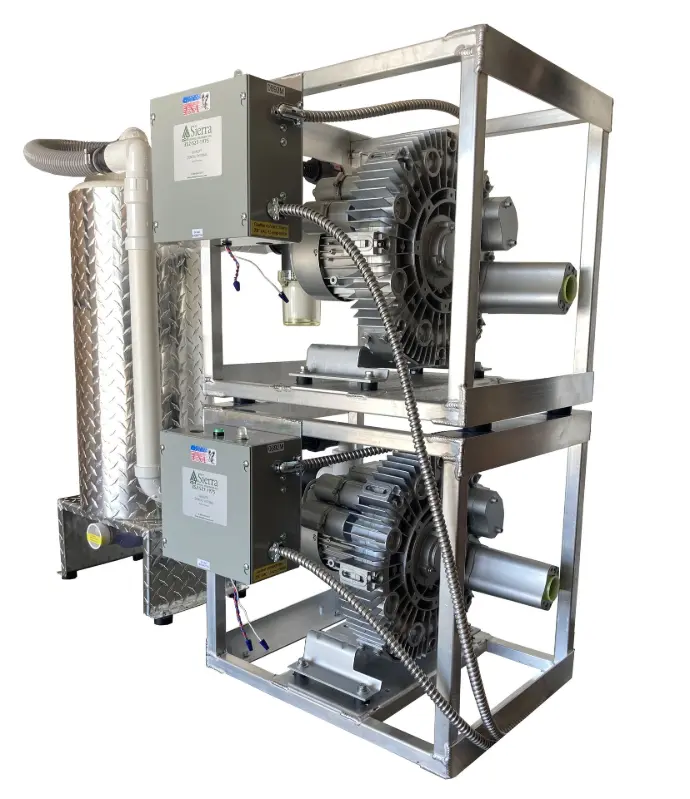

Sierra TV-22 Dry Vacuum System

The Flexible Exhaust Hose Kit with Fittings is required for proper system function.

Sierra TV-22 Dry Vacuum System for 6-12 users:  Completely Water-less / Completely Oil-less

Features:

• Complete 10 Year Warranty
• Use anywhere a wet system is currently used. No special plumbing required.
• Complete redundancy for backup.
• One moving part in turbine – Motor rated for 50,000 hours of continuous use (about 25 years in a dental practice).
• Waterless ** Save $700 per year or more! Out lasts several water type pumps – No sewer expense. Maintenance-free turbine.
• Waterless ** Preserve our natural resources! Adapts to future federal regulations for the handling of hazardous waste and blood-borne pathogens.
• Higher volume (170 CFM) provides a safer work zone by removing aerosol hazards in the operatory more efficiently.

Specifications:

• Voltage 230 VAC
• Frequency Hz 50 - 60
• Output  4 H.P. (2 H.P.  x 2)
• Current Amps 10 x 2
• Weight (lbs) 2 Motors – 85 lbs each
• Dimensions 20″ x 20″ x 16″
• Tanks (12 gallons) Wt. 43lb Ht. 40"
• Includes: Low voltage control, separator tank with automatic drain and check valve
• Other tank sizes available
• Handles 6-12 operatories
• No special plumbing required
• Volume 170 CFM
• No vanes, no oil, no belts, virtually maintenance-free. Only change the filter.
• Longest life expectancy 25 years. Takes up less space than most
• Low Cost
• High volume makes TRU VAC the most efficient in removing germ-laden aerosols in the operatory
