Sierra TV-22 Dry Vacuum System

8,959.00 8959.0 USD 9,954.44


Not Available For Sale

  • Sierra Dental Dry Vacuum System Options

This combination does not exist.

Product Information:

  • Products Model: TV-22 TV-22 and EKTV-22
  • Product Brand: Sierra Dental
  • Condition: New
  • Warranty: 10 Years

Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here.

The Flexible Exhaust Hose Kit with Fittings is required for proper system function.

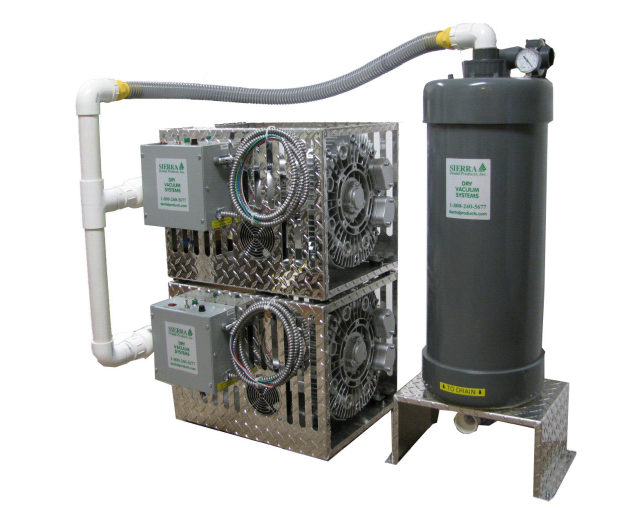

Sierra TV-22 Dry Vacuum System for 6-12 users:  Completely Water-less / Completely Oil-less

2021 Warranty Checklist - You MUST INCLUDE a signed copy of this with your WARRANTY CARD to validate warranty.


  • Complete 10 Year Warranty
  • Use anywhere a wet system is currently used. No special plumbing required.
  • Complete redundancy for backup.
  • One moving part in turbine – Motor rated for 50,000 hours of continuous use (about 25 years in a dental practice).
  • Waterless ** Save $700 per year or more! Out lasts several water type pumps – No sewer expense. Maintenance-free turbine.
  • Waterless ** Preserve our natural resources! Adapts to future federal regulations for the handling of hazardous waste and blood-borne pathogens.
  • Higher volume (170 CFM) provides a safer work zone by removing aerosol hazards in the operatory more efficiently.


  • Voltage 230 VAC
  • Frequency Hz 50 - 60
  • Output  4 H.P. (2 H.P.  x 2)
  • Current Amps 10 x 2
  • Weight (lbs) 2 Motors – 85 lbs each
  • Dimensions 20″ x 20″ x 16″
  • Tanks (12 gallons) Wt. 43lb Ht. 40"
  • Includes: Low voltage control, separator tank with automatic drain and check valve
  • Other tank sizes available
  • Handles 6-12 operatories
  • No special plumbing required
  • Volume 170 CFM
  • No vanes, no oil, no belts, virtually maintenance-free. Only change the filter.
  • Longest life expectancy 25 years. Takes up less space than most
  • Low Cost
  • High volume makes TRU VAC the most efficient in removing germ-laden aerosols in the operatory
