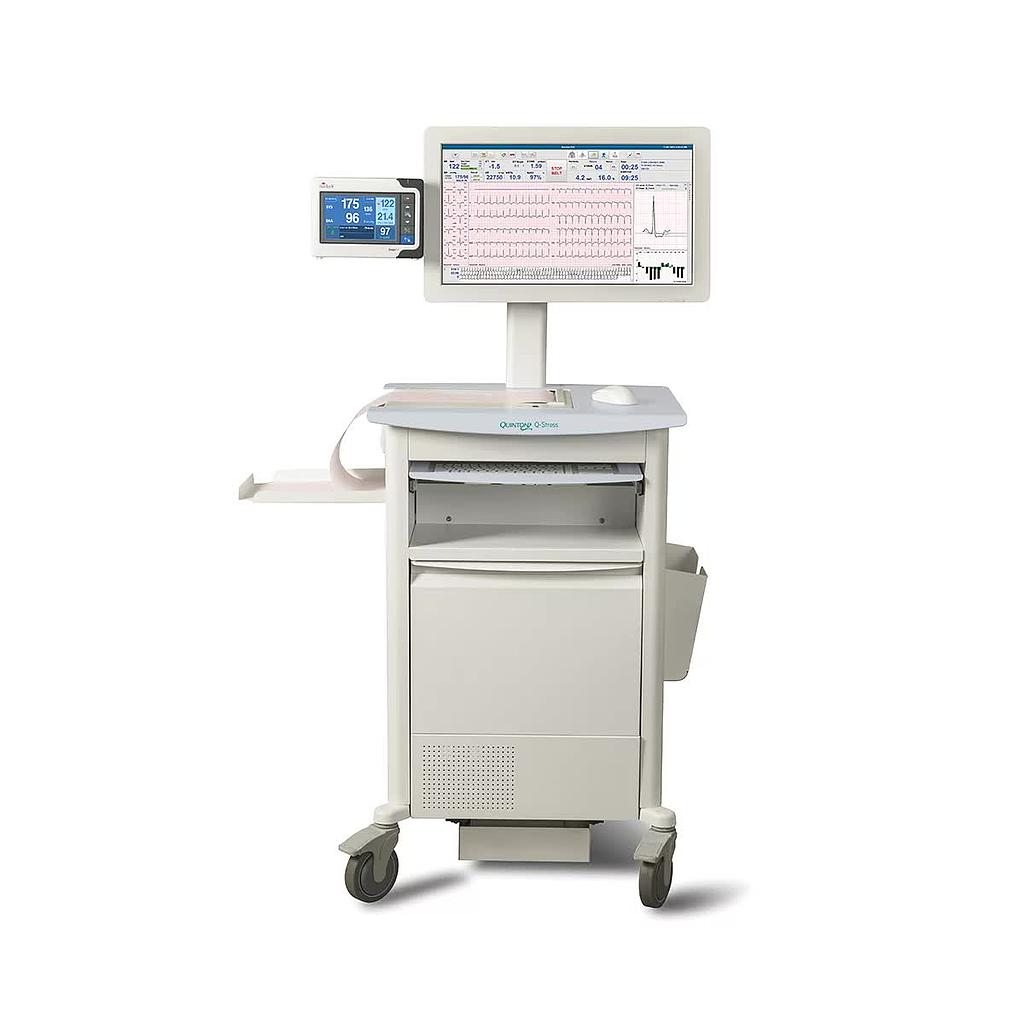

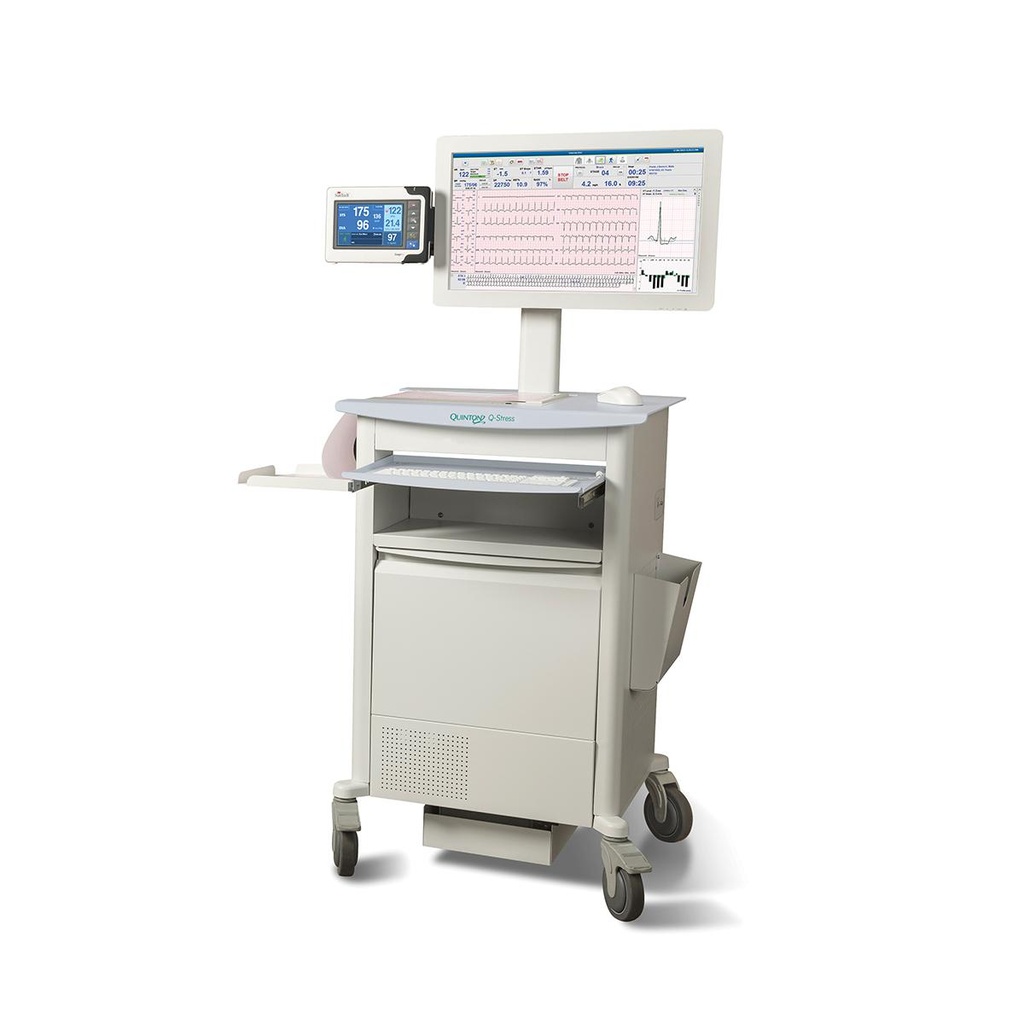

Welch Allyn Q-Stress Cardiac Stress Mid System

The simple, secure and connected solution for clinical excellence in diagnostic cardiac stress testing. Imagine a future where you can detect and diagnose heart conditions faster and with greater accuracy. With the Q-Stress System, that future is here. We're delivering the accurate, intelligent insights you need to help improve patient outcomes. Get ready to experience a more user-friendly and patient-friendly approach to stress tests. The Q-Stress system's intuitive user interface helps you access the diagnostic information you need—quickly. Our best-in-class algorithms offer exceptional accuracy in real-time ST-segment monitoring, arrhythmia detection and resting ECG interpretation. The system's complete clinical data presentation shows you patient information on one screen with a 24-inch display, and the intuitive left-to-right workflow leads you through stress tests with all settings just one click away.

Features:

• VERITAS algorithm offers exceptional accuracy in real-time ST-Segment Monitoring, arrhythmia detection, and resting ECG interpretation
• Source Consistency Filter removes noise and maintains ECG integrity
• Real-time full disclosure lets you review historical ECG data throughout the exam
• Optional wireless data acquisition increases workspace flexibility
• Connected workflows help you improve patient care and information access
• Data encryption and additional security features approved by the U.S. Department of Defense (DoD) help you secure patient information
• Flexible user configurations tailor over-reads, billing and data storage to your workflow
• 12-lead ECG interpretation for adults, adolescents and children
• Standards-based HL7 and DICOM bidirectional connectivity

Simple

• Logical user interface with left-to-right navigation and intuitive controls guides users through procedures with ease
• Only solution with our patented Source Consistency Filter (SCF) that minimizes noise and baseline artifact offering an accurate picture of the ECG waveform
• Wireless Acquisition Module (WAM) digitally transmits ECG data to help make exams easier and more comfortable for patients
• Best-in-class VERITAS algorithm enables quick access to the diagnostic information needed to make the best clinical decisions

Secure

• Encryption available to protect the information that matters most
• Flexible configurations enable over-reads, billing, and data storage that can all be tailored to your workflow

Connected

Wireless Freedom

The Welch Allyn Wireless Acquisition Module (WAM) makes exams easier and creates a more comfortable, trip-free experience for your patients. Free your care area from unnecessary wires with a simple, untethered workflow that helps minimize artifact while capturing quality exam data.

Secure Your Data at Rest and In-Motion

We’re helping you streamline workflows and promote data security with simple EMR connectivity. Install Q-Stress software on a server and connect to multiple device workstations throughout your network to schedule exams, review full disclosure exams, enter conclusions and electronically sign results.

Accurate, Intelligent Insights All in One User-Friendly, Patient-Friendly Solution

Discover how the Q-Stress System is revolutionizing cardiac stress testing by combining clinical excellence, an intuitive user interface and patient focused features.

Specifications

• Operating System: Microsoft Windows 10 Pro 64-bit
• Power Requirements: 100/120 VAC 50/60 Hz 2.5 A nominal; 200/240 VAC 50/60 Hz 1.3 A nominal
• Protocols: Standard: Bruce, Modified Bruce, Modified Balke, Naughton, USAF/SAM 2.0, USAF/SAM 3.3, Ramped-low, Ramped-medium, Ramped-high, Time-Ramp, and METs Ramp, Astrand (ergometer), pharmacological and more Custom: Up to 100 custom protocols supported
• Front-End Module: AM12Q with AHA 10-electrode-pinch or snap connectors, AM12Q with IEC 10-electrode-pinch or snap connectors, Wireless Acquisition Module (WAM) for wireless ECG acquisition with AHA 10-electrode-pinch connectors, Wireless Acquisition Module (WAM) module for wireless ECG acquisition with IEC 10-electrode-pinch connectors
• Display and Analysis Filters: Source Consistency Filter (SCF), muscle artifact, baseline wander, 40 Hz low pass, line frequency
• Reports: In-Test: 12-lead, average beat report, 1-page write screen, continuous rhythm, arrhythmia events Final: Summary, tabular, worst case, average beats by stage or by minute, in-test ECG reports, trend graphs and peak exercise. Reports can be viewed, printed, saved in PDF format, emailed or exported in PDF, XML and DICOM.
• Outputs: TTL pulse and analog signals for QRS detection synchronization using any ECG lead
• External Device Interfaces: Treadmills: TM 55, Trackmaster TMX428, Ergometers: Compatible with Ergoline and Lode communication protocols, Blood Pressure Monitors: SunTech Tango+ and Tango M2
• Printers: Thermal: High-resolution Z200+ with automatic feed and continuous printing capability (requires additional network port), Laser: Optional compact HP M501dn laser printer with high-quality print (recommended), Paper: 8.5 x 11 in (letter) or 210 x 300 mm (A4)
• Network Interface: Microsoft-compatible networking for storage, distribution and email; 100 Mbps connection or better is required
• Paper: Smart (210 x 280 mm), perforated Z-fold thermal cued paper with full grid; 250 sheets stored in paper tray
• Export/Communication Protocol/Format : TCP/IP, PDF, XML, HL7, DICOM
• Display: 24 in (609 mm) flat panel LCD; 24 in touchscreen display is optional
• Options: Networking, Resting ECG Analysis, ST-segment Re-Analysis, TTL Trigger, WAM
