Carestream 9300 Select 3D Cone Beam and Panoramic X-ray

_{Delivery – Continental US only, Training – Basic Training, Warranty – 1 year parts, 90 day labor}

The ultimate in versatility, the CS 9300 system combines dedicated panoramic, optional one-shot cephalometric and up to 7 selectable fields of view cone beam 3D images for the widest range of dental applications.

Panoramic - CS 9300 delivers fast and accurate panoramic images including: standard, pediatric and segmented, TMJ (2 or 4 views) and maxillary sinus. The adjustable focal trough ensures anatomically correct images each and every time.

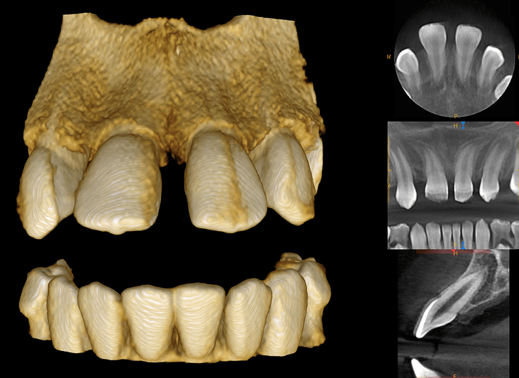

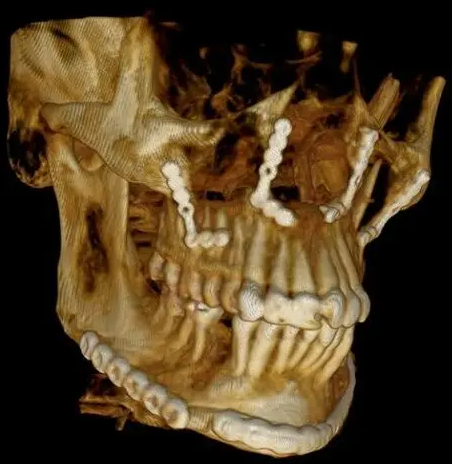

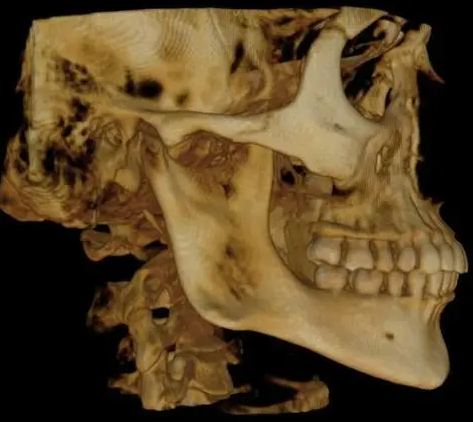

3D - The innovative CS 9300 delivers crystal-clear, high-quality 3D/CBCT images in seconds. Choose from a variety of fields of view, including Focused, Single/Dual Jaw, TMJ (2x and 4x), Sinus, and Maxillofacial options. The included CS 3D Imaging software enhances treatment planning and facilitates patient communication.

Pulsed Radiation - The CS 9300 system's 3D modality utilizes pulsed radiation, reducing patient dose up to 60%.

Wheelchair Accesible - The CS 9300 system's open design and motorized height adjustment accommodates patients of any size, including those in wheelchairs.

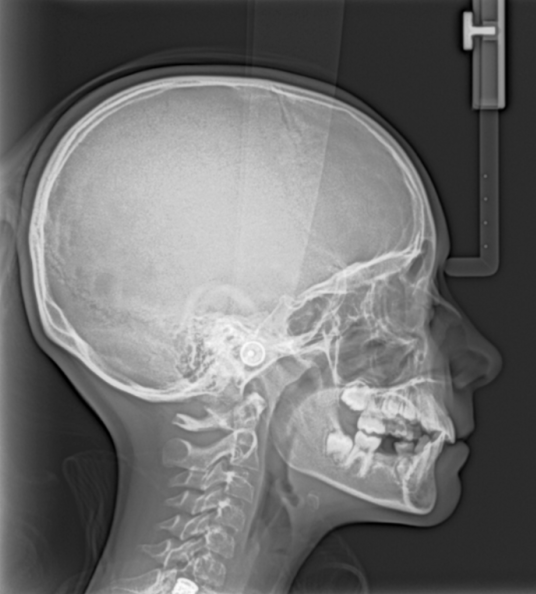

Ceph Upgradeable - "One-Shot" cephalometry captures picture-perfect cephalometric images in just over a second. Cephalometric exams include: lateral, frontal (AP/PA), submento-vertex, and carpus in the following size choices: 30 x 30, 24 x 30, 24 x 24, 18 x 24, 18 x 18 cm.

Adjustable Fov - CS 9300 captures a wide range of field of view sizes (5x5, 10x5, 8x8, 10x10 cm) to support a variety of dental applications - from single implants to complete maxillofacial exams.

Standing Design - Face-to-face positioning puts patients at ease, facilitating positioning and minimizing risk of movement.

Includes:

• Delivery and Installation within the Continental US
• Acquisition computer included

For more information about available features please read the product brochure.

This unit MUST be plugged into a dedicated electrical circuit with a breaker as well as a line conditioner to ensure more consistent current and protection against power surges.
