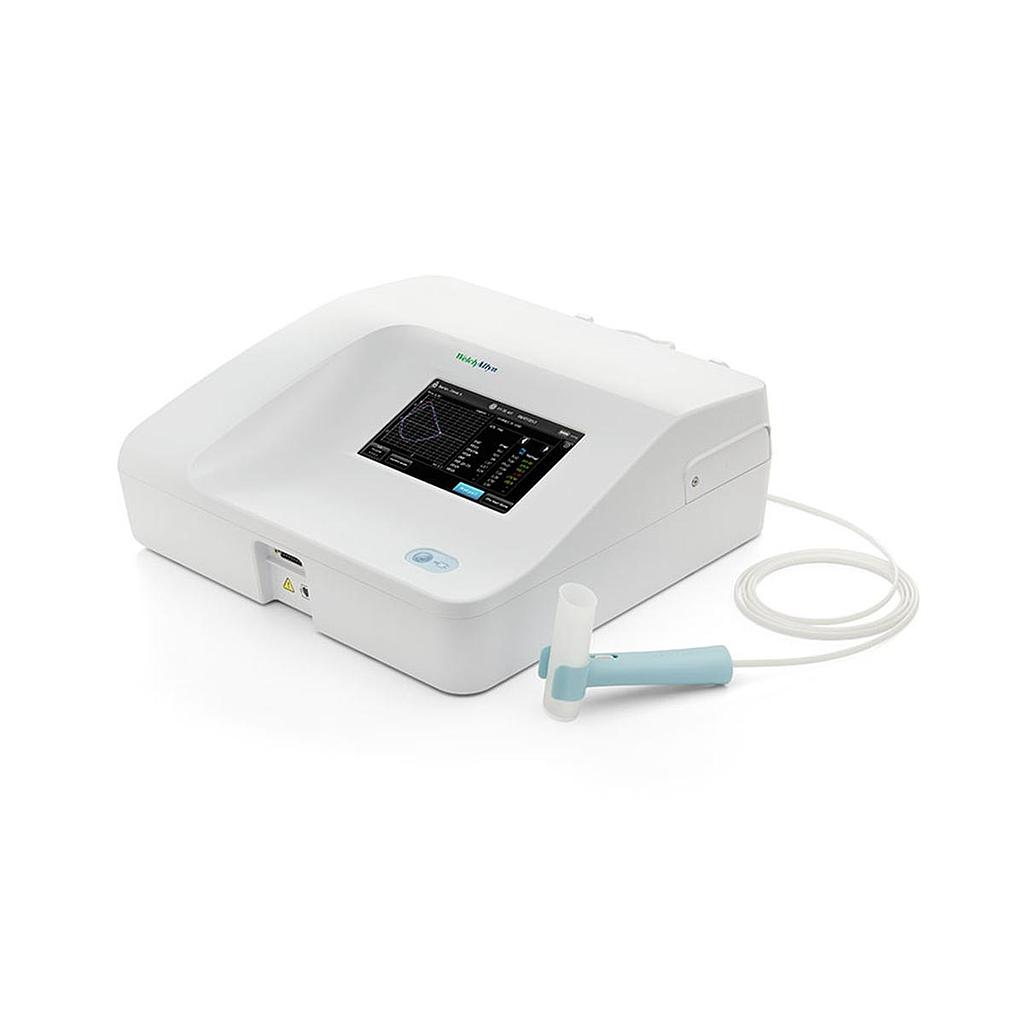

Welch Allyn CP 150 Resting Electrocardiograph with Spirometry, INT, AHA, D, EN, NA_PCORD
This product is also in these categories:
Product Information:
- Products Model: CP150AS-1ENB
- Product Brand: Welch Allyn
- Condition: New
- This special-order item ships in an estimated 4-6 weeks.
- Warranty: Satisfaction Guaranteed
Experience simple, streamlined ECG testing with a solution that's designed to help your practice run more efficiently. Designed for your primary care practice, the CP 150 ECG helps streamline your workflow with EMR connectivity, clinical decision support and full-size print outs. The 7” color touchscreen display lets you easily enter patient data; in fact, 94% of CP 150 ECG users say the touchscreen display and simple user interface have helped them improve their practice efficiency. Choose connectivity options to allow caregivers to share exam results immediately across your network and help improve mobility and utilization.
Features
- ECG print previews can help save time and reduce paper costs
- Three-, six-, or 12-lead ECG preview options
- Battery operation lets you easily transport your device from room to room
- Simplified EMR connectivity without a complicated interface
- Instant-on powers the device up quickly, so you can take an ECG at a moment’s notice Optional Features
Optional Features:
- Wireless connectivity helps increase device mobility and utilization
- Spirometry module lets you perform two reimbursable tests with one device
- DICOM compatibility enhances interoperability
- Adult and pediatric MEANS ECG interpretation software
Simple
Streamline exams with a simple touchscreen & lead quality display.
Fast
Help eliminate start-up delays with an instant-on feature.
Connected
Help increase mobility & utilization with wireless connectivity.
Specifications:
- Product Type: Electrocardiograph
- Display Type: TFT, 18 cm 7" color touchscreen
- Resolution: 800 x 480
- Thermal Paper: Z-fold 21 cm (8.25") x 28 cm (11") x 200 sheets
- Thermal Printer: Computer-controlled dot array, 8 dots
- Thermal Chart Paper Speeds: 10, 25 or 50 mm
- Common Mode Rejection Ratio (CMRR): >80 dB
- Input Impedance: >2.5 MΩ
- A/D Conversion: 16 bits
- ECG Storage: At least 100 ECG tests
- Frequency Range: 0.3 to 150 Hz
- Digital Sampling Rate: 8000 samples/second/channel for data acquisition, 500/1000 samples/second/channel for adult/pediatric ECG data analysis and storage
- Pacemaker Detection: ANSI/AAMI EC11
- Lead Detection: Lead off and noise
- AC Fuses: 2.0-amp 250-V rating
- Filters: High-performance baseline - 0.5 Hz, Muscle tremor - 35 Hz, AC interference - 50 Hz or 60 Hz
- Dimension (L x H x W): 380.9mm (15") x 358.1mm (14.1") x 136.2mm (5.4")
