Stellaris XDI-200 Panoramic Unit
This product is also in these categories:
Product Information:
- Products Model: 9768600008
- Product Brand: Xline Imaging
- Condition: New
- Warranty: 5 Years
Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here. The shipping cost provided is an estimate. Actual shipping and handling costs may vary based on the destination, logistics, supply chain challenges, and other shipment requirements. The actual shipping cost will be added to the final invoice.

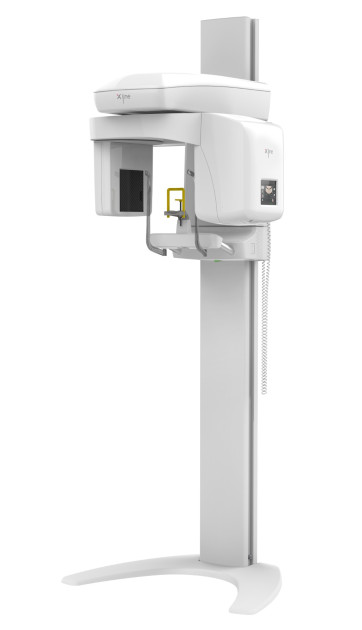

Stellaris XDI-200 Panoramic Unit
XDI-200 and XDI-250 (Stellaris 2D) is the most innovative panoramic of the Xline portfolio. Based on the well-known and reliable XDI-300 (Stellaris 3D) platform, it offers a brilliant new image quality, thanks to the new dynamic image focusing technique.
- Ready for Every Diagnosis
- Compact and Modern
- Power of touch
Why Xline Stellaris? Xline is a former subsidiary of Dentsply Sirona Group, with its R&D and manufacturing history going back to year 2000. Currently sold in 105 countries across Europe, Asia, Africa, and Central & South Americas, Xline has finally entered the U.S. market with Dentists Nexus as its primary distribution partner in 2024. The Stellaris 3D CBCT is Xline's latest flagship extraoral imaging unit, exemplifying its 20+ years of Italian design & manufacturing heritage. Its minimalist yet elegant form factor is modern in its appearance as well as its applications within today's digital dentistry.

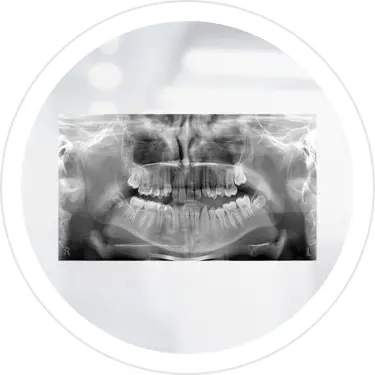

Ready for Every Diagnosis
XDI-200 (Stellaris 2D) covers a variety of diagnostics in 2Dand Ceph with one shot ceph images and programs for panoramic examinations.​

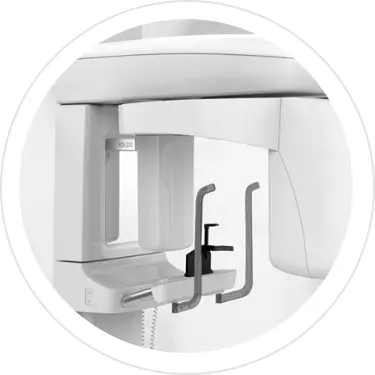

Compact and Modern
The minimalist, elegant, space-saving design allows installation of the XDI-200 (Stellaris 2D) in areas where conventional devices would not fit.​

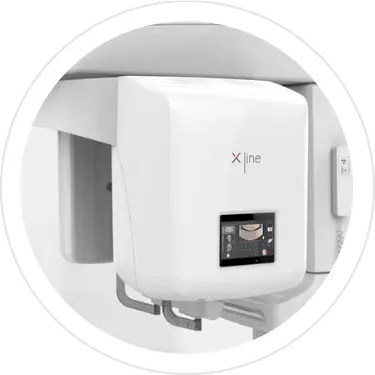

Power of Touch
Control of the system is available from your PC screen as well as on the unit's touchscreen, allowing straightforward program selection with hints for positioning.
Sensor Technology | CMOS Flat Panel, CSI Flat Panel for ceph |
Pixel size | 98 µm |
Focal Spot | 0.5 (IEC 336 / 1997) |
Tube Voltage | 60 - 86 kV |
Tube Current | 2.5 - 10 mA |
Exposure time 2D | 4.6 - 14.2 seconds |
Exposure Time Ceph One-Shot | 0,5s adult, 0,2s child |
Ceph Image Size | 240x300 mm |
Weight | 109kg without ceph, 137kg with ceph |
Panoramic Programs | in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth. |
Ceph Programs | LL 30x24, LL18x24, AP, PA, Carpus |
Patient Sizes | Child, teenager, woman, man |
Software | Â X-Light |
Features | Panoramic, panoramic upgradable to 3D and ceph, panoramic with ceph upgradable to 3D. |
Footprint | 140x110 cm without CEPH, 240 x 110cm with CEPH |
Patient position | Standing or sitting |
Wheelchair acessible | Yes |
