Stellaris XDI-300 CBCT Unit
This product is also in these categories:
Product Information:
- Products Model: 9768600000
- Product Brand: Xline Imaging
- Condition: New
- Warranty: 5 Years
Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here. The shipping cost provided is an estimate. Actual shipping and handling costs may vary based on the destination, logistics, supply chain challenges, and other shipment requirements. The actual shipping cost will be added to the final invoice.

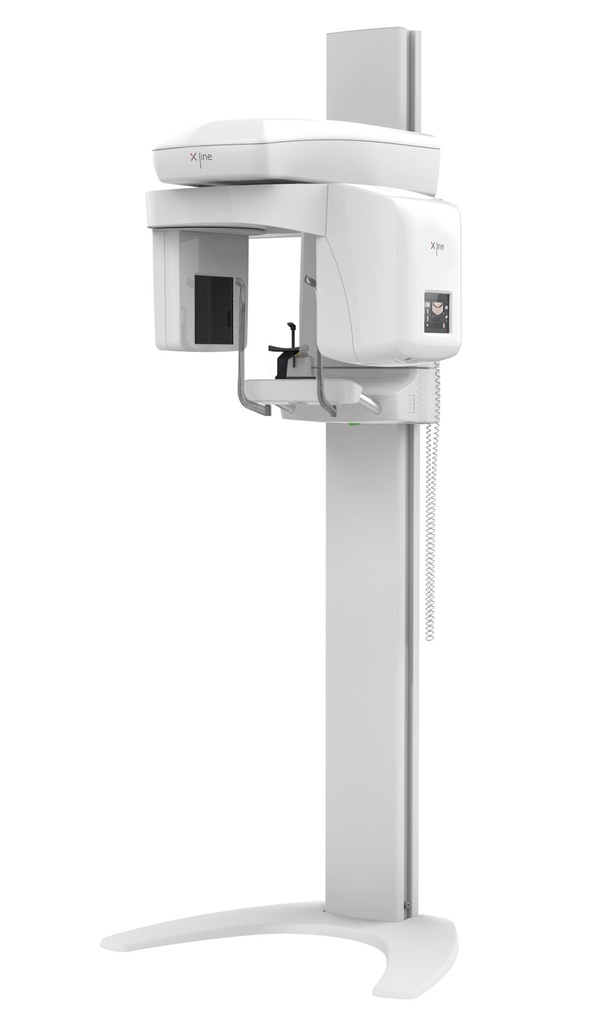

Stellaris XDI-300 CBCT Unit
The XDI-300 (Stellaris 3D) is fully upgradeable, all-in-one CBCT systems that combine 3D imaging, and panoramic capabilities in a compact design (optional One Shot ceph upgrade available). Engineered to support a full spectrum of dental applications, including endodontics, periodontics, oral surgery, implant planning, and orthodontics, they deliver everything you need for advanced diagnostics and everyday practice efficiency.
Why Xline Stellaris? Xline is a former subsidiary of Dentsply Sirona Group, with its R&D and manufacturing history going back to year 2000. Currently sold in 105 countries across Europe, Asia, Africa, and Central & South Americas, Xline has finally entered the U.S. market with Dentists Nexus as its primary distribution partner in 2024. The Stellaris 3D CBCT is Xline's latest flagship extraoral imaging unit, exemplifying its 20+ years of Italian design & manufacturing heritage. Its minimalist yet elegant form factor is modern in its appearance as well as its applications within today's digital dentistry.
Ready for Every Diagnosis
XDI-300 (Stellaris 3D) covers a variety of diagnostics in 2D, 3D and Ceph with multiple fields of view, programs for panoramic examinations and cephalometric scans.
Compact and Modern
The minimalist, elegant, space-saving design allows installation of the XDI-300 (Stellaris 3D) in areas where conventional devices would not fit.
Power of Touch
Control of the system is available from your PC screen as well as on the unit's touchscreen, allowing straightforward program selection with hints for positioning.
| Sensor Technology | CMOS Flat Panel, CSI Flat Panel for ceph |
| Pixel size | 98 µm |
| Voxel Size | 80 µm |
| Focal Spot | 0.5 (IEC 336 / 1997) |
| Tube Voltage | 60 - 86 kV |
| Tube Current | 2.5 - 10 mA |
| Exposure time 2D | 4.6 - 14.2 seconds |
| Exposure time 3D | 5 - 16.9 seconds |
| Exposure Time Ceph One-Shot | 0,5s adult, 0,2s child |
| 3D Active Sensor Area | 160x160 mm |
| Ceph Image Size | 240x300 mm |
| Volume size 3D | 5x6,5, 7x6,5, 6x10, 8x6,5, 8x10, 11x6,5, 11x10 |
| Weight | 109kg without ceph, 137kg with ceph |
| Panoramic Programs | in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth. |
| 3D Programs | in total 27: adult full, child full, adult and child upper and lower jaw, adult and child sinuses, surgical and implant volume front, left and right, hemi-arc left and right, upper and lower, ENDO volume in 6 different positions, TMJ right and left. |
| Ceph Programs | LL 30x24, LL18x24, AP, PA, Carpus |
| Patient Sizes | Child, teenager, woman, man |
| Software | X-Light |
| Features | 3 in 1 or 2 in 1 upgradeable to 3 in 1 |
| Footprint | 140x110 cm without CEPH, 240 x 110cm with CEPH |
| Patient position | Standing or sitting |
| Wheelchair acessible | Yes |
