Tapmaster -Surface Mount Kit 8030 For Model 1780 Floor Activators


36.90 36.9 USD 41.00


Not Available For Sale

    This combination does not exist.

    Product Information:

    • Products Model: 8030
    • Product Brand: Tapmaster, Inc.
    • Condition: New
    • Warranty: 5 Years

    Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here.

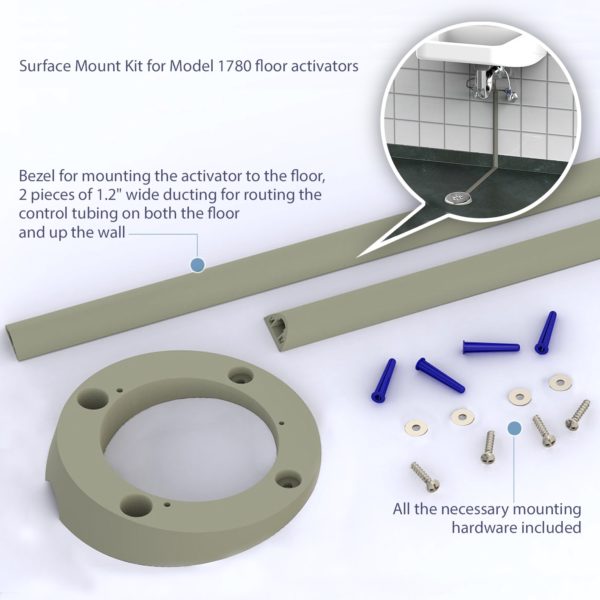

    This surface mount kit provides a means to install the Model 1780 floor activators and their control tube on top of the floor. This kit comes with a bezel for mounting the activator to the floor, 2 pieces of 1.2″ wide ducting for routing the control tubing on both the floor and up the wall to the Tapmaster® valve as well as all the necessary mounting hardware.

    Included with Model 1780 surface mount kit:
    Rugged Glass filled polypropylene 10° angled bezel
    Self-adhesive snap together PVC ducting in 22″ and 17″ lengths
    Short Replacement Screws for disc mounting
    Stainless Steel Mounting Hardware


    Pressure Operating 0 to 125 psi (862 kpa) maximum
    Static Burst Rating 700 psi (4,830 kpa) for complete assembly
    Flow Both Valve Blocks 7.2 gpm @ 60 psi (27.01/m @ 4 bar)
    Connections – Valve Blocks Inlet Integrated 3/8" compression nut "O" ring seal
    Outlet Nut and sleeve, 3/8" compression
    Filtration Control Circuit 25 micron
    Main Port Greater than .060" (1.5 mm)
    Construction Valve Bodies Chrome plated brass
    Seals Silicone or E.P.D.M.
    Control Tubing 1/8" O.D. 3 tube bundle (high density polyurethane)
    Kick Plate (1740 & 1750 Series) 18g #4 brushed stainless steel top, aluminum base
    Foot Pedal (1760 Series) 18g #4 brushed stainless steel
    Euro (1770 Series) Brushed nickel plated brass housing; stainless steel mechanism, polyurethane probe
    Floor Activators (1780 Series) 304 stainless steel laminate, polyurethane buttons, stainless steel hardware
    Dimensions Valve Block (less tube fittings) 2.5" x .88" x 1.25" (6.35 x 2.24 x 3.18 cm)
    Button Valve Fittings .63" x .63" x 1.0" (1.60 x 1.60 x 2.54 cm)
    Kick Plate (1740 & 1750 Series) 8.0"w x 3.42"h x 1.14"d (20.32 x 8.64 x 2.90 cm)
    Floor Foot Pedal (1760 Series) 7.1"w x 3.0"h x 1.1"d (18 x 7.6 x 2.8 cm)
    Euro (1770 Series) 1.19"w x 4.92"h x 1.37"d (3.0 x 12.5 x 3.5 cm)
    Floor Activators (1780 Series) 5.65" diameter disc (14.35 cm)
