Tapmaster - Toe Kick Mount Kit 8010 For Model 1780 Series Floor Activators


23.76 23.76 USD 26.40


Not Available For Sale

    This combination does not exist.

    Product Information:

    • Products Model: 8010
    • Product Brand: Tapmaster, Inc.
    • Condition: New
    • Warranty: 5 Years

    Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here.

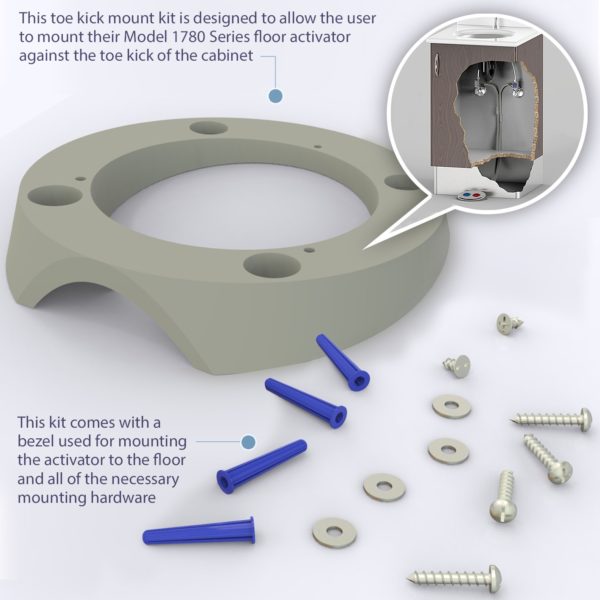

    This toe kick mount kit is designed to allow the user to mount their Model 1780 Series floor activator against the toe kick of the cabinet. This kit comes with a bezel used for mounting the activator to the floor and all of the necessary mounting hardware.

    Included with Model 1780 Series toe kick mount kit:
    Rugged Glass filled polypropylene 10° angled bezel
    Short Replacement Screws for disc mounting
    Stainless Steel Mounting Hardware


    0 to 125 psi (862 kpa) maximum

    Static Burst Rating
    700 psi (4,830 kpa) for complete assembly
    Both Valve Blocks
    7.2 gpm @ 60 psi (27.01/m @ 4 bar)
    Connections – Valve Blocks
    Integrated 3/8" compression nut "O" ring seal

    Nut and sleeve, 3/8" compression
    Control Circuit
    25 micron

    Main Port
    Greater than .060" (1.5 mm)
    Valve Bodies
    Chrome plated brass

    Silicone or E.P.D.M.

    Control Tubing
    1/8" O.D. 3 tube bundle (high density polyurethane)

    Kick Plate (1740 & 1750 Series)
    18g #4 brushed stainless steel top, aluminum base

    Foot Pedal (1760 Series)
    18g #4 brushed stainless steel

    Euro (1770 Series)
    Brushed nickel plated brass housing; stainless steel mechanism, polyurethane probe

    Floor Activators (1780 Series)
    304 stainless steel laminate, polyurethane buttons, stainless steel hardware
    Valve Block (less tube fittings)
    2.5" x .88" x 1.25" (6.35 x 2.24 x 3.18 cm)

    Button Valve Fittings
    .63" x .63" x 1.0" (1.60 x 1.60 x 2.54 cm)

    Kick Plate (1740 & 1750 Series)
    8.0"w x 3.42"h x 1.14"d (20.32 x 8.64 x 2.90 cm)

    Floor Foot Pedal (1760 Series)
    7.1"w x 3.0"h x 1.1"d (18 x 7.6 x 2.8 cm)

    Euro (1770 Series)
    1.19"w x 4.92"h x 1.37"d (3.0 x 12.5 x 3.5 cm)

    Floor Activators (1780 Series)
    5.65" diameter disc (14.35 cm)
