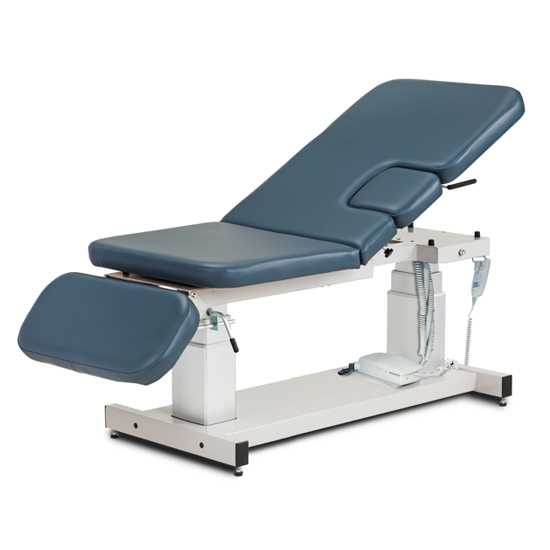

Clinton, Imaging Table, 3-Section, Motorized Hi-Lo, Drop Window, 76" x 27"

• Three-piece top with pneumatic adjustable backrest, manual footrest and window drop
• Footrest is adjustable from either side and raises up to 30º from flat position
• Optional side rails & casters (see options below)
• Trendelenburg/Reverse Trendelenburg plus or minus 15º
• Easy-to-use hand control
• All-welded base and top frame
• Unobstructed base design
• Dual column lift system adds rigidity
• Paper dispenser included
• Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
• Industry leading 5-year, limited warranty
• 34" wide model available
• Model 80073: 500 lbs load capacity under normal use
• Model 80073-X: 600 lbs load capacity under normal use

Specifications

80073—76"L x 27"W x 21.5" – 37.5"HR Backrest—38"L x 27" W Footrest—12"L x 27"W Window—10" L x 10"W 80073-X—76"L x 34"W x 21.5" – 37.5"HR Backrest—38"L x 34" W Footrest—12"L x 34"W Window—10" L x 10"W

Options

011 Power Backrest • Smooth power control raises backrest to 80º and lowers to flat 090 Power Footrest • Smooth power control lowers footrest to 30º and raises to flat 080 Safety Straps • 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners • 2 safety staps per set. • Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners 087 Locking Casters • 3" heavy duty, rubber wheel, easy-roll casters Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm) 098 Safety Rails • Pair • Positions up and down • Plunger height adjustment

Vinyl Colors

Slate Blue Wedgewood Royal Blue Burgundy Desert Tan Country Mist WarmGray Gunmetal Black
