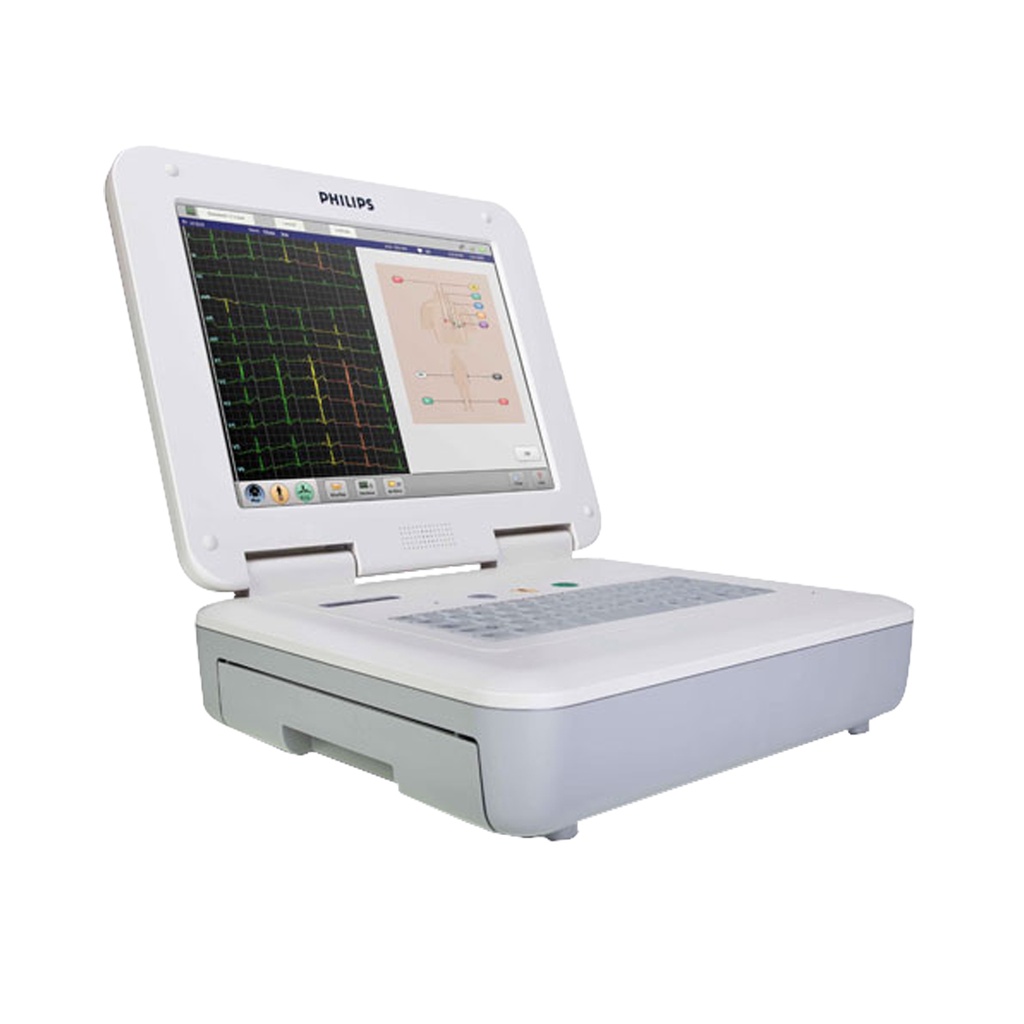

Philips Pagewriter TC70
This product is also in these categories:
Product Information:
- Products Model: 64770RS
- Product Brand: DRE Medical
- Condition: Factory Refurbished
- Warranty: Satisfaction Guaranteed
The PageWriter TC70 puts ECG interpretation directly at the bedside with its 15-inch touchscreen and built-in Philips DXL algorithm covering up to 18 leads. Unlike traditional cart-based systems that require you to wheel equipment between locations, this unit handles acquisition, analysis, and reporting in one compact footprint.
The short version: guided prompts walk staff through a 1-2-3 process while the system automatically interprets results using over 600 clinical statements. Built-in Wi-Fi transfers reports instantly to your EMR, and you can pull up previous ECGs right at the bedside for immediate comparison. The STEMI decision support includes graphical ST vector analysis that highlights critical changes.
Worth noting the 3-in-1 Trident lead wires that cut down on the usual cable tangle, plus an anatomic patient interface that shows correct lead placement. The touchscreen responds well even with gloves on.
Key Features
- 15-inch touchscreen for acquisition and review
- Philips DXL algorithm with 18-lead interpretation
- Guided 1-2-3 ECG process with context prompts
- 802.11 Wi-Fi for instant report transfer
- Bedside access to previous ECGs for comparison
- STEMI decision support with ST vector graphics
- 3-in-1 Trident lead wires reduce tangling
- Anatomic interface guides correct lead placement
Specifications
| ECG Functions | |
|---|---|
| Simultaneous Lead Acquisition | Up to 18 leads |
| Report Storage/Transfer | Full disclosure timed ECG, 20 minute history of all 16 leads and complete ECG report of any 10 seconds |
| Fidelity | Full fidelity at 500 Hz of all 10 sec for up to 16 leads in XML format |
| Interpretive Algorithm | Philips DXL 18-Lead ECG Algorithm |
| Interpretive Statements | >600 interpretive statements with integrated pediatric analysis |
| Lead Placement Detection | Detects 20 different lead reversals |
| User Interface | |
| Display | 15 inch TFT resistive touchscreen |
| Operation | 1-2-3 guided operation with context-sensitive application |
| Keyboard | 65-button full alphanumeric keyboard |
| Signal Processing | |
| Resolution | 5 μV (patient interface module) |
| Presentation Filters (10 sec) | High Pass: 0.05/0.15/0.5 Hz; Low Pass: 40/100/150 Hz |
| Presentation Filters (Rhythm) | High Pass: 0/0.5/0.15 Hz; Low Pass: 40/100/150 Hz |
| Pre-Processing Filters | AC noise 50–60 Hz, artifact rejection and baseline wander |
| Networked Features | |
| Network Integration | Central time management, configurable rules for worklists (requires IntelliSpace ECG) |
| Signal Quality Indicators | Leads Off Advisory, Lead Color, LeadCheck, four-color waveform quality indicators |
| Training and Help | |
| Integrated Help | Self-paced graphical help and interactive animations covering primary clinical functions |
| Electrical | |
| AC Power | 100–240 VAC, 50/60 Hz |
| Power Consumption | 75 W max |
| Battery | Typically 50 ECGs per charge; recharge to full in 5 hours |
| Mechanical | |
| Dimensions | 40 x 33 x 16 cm (15.7 x 13 x 6.3 in) |
| Weight | 13 kg / 28 lb |
| Environmental | |
| Operating Temperature | 10°C to 40°C (50°F to 104°F) |
| Relative Humidity | 15% to 80% |
| Altitude | Up to 4,550 m (15,000 ft) |
| Standards | |
| Safety Standards | IEC 60601-1; IEC 60601-2-51; UL 2601-1; CAN/CSA-C22.2 No. 601.1-M90; AAMI EC11 (R:2001) |
| Intended Use | |
| Settings | Hospital and related clinical settings for diagnostic ECG acquisition and interpretation |
