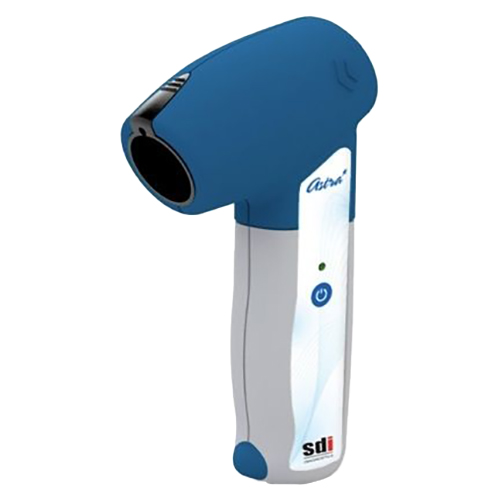

SDI Diagnostics Astra Bluetooth Wireless Spirometer

True Hand-Held BT Spirometry! No cables and no worries. Works with PC's, Laptops, or tablets that are running Windows. Astra BT Spirometer is the solution for those searching for a fully-integrated AND wireless spirometer. Complete package includes our AstraPro software.

Features:

• Simplicity With Comprehensive Spirometry
• Powered by two AAA batteries

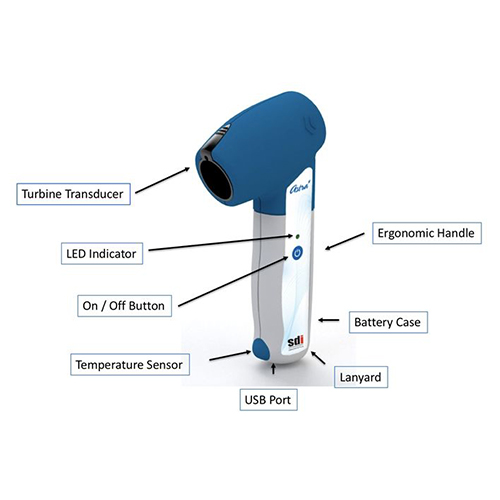

• Ergonomic handle includes: Visual connectivity indicator, Integrated temperature sensor, Lanyard
• Power save mode
• Transmit and share data and results with your EMR system
• Meets ATS standards
• NIOSH (National Institute for Occupational Safety and Health) Compliant
• Simultaneous F/V and V/T graphs

Specifications:

• Applications: Astra BT Wireless Spirometer, (50) Mouthpieces, (1) Soft Carrying Case, (1) AstraPro EMR Compatible Software, (2) AAA Batteries, (1) Lanyard, User Manual
• Forced vital capacity: FVC, FEV1, FEV1/FVC, PEF, FEF50%, FEV6, FEV1/FEC, PEF, FEF25-75%, FEV6, FEV1/ FEV0.5, PEFT, Vext, FIVC, FIF50%, FEF50/FIF50, QC Grades, FEV3, FEV0.5, FEV0.5/FVC, FEV3/FVC, FEV1/VC, FEV1/FEV6, FEV1/PEF, FEV1/FIV1, PEF/PIF, FEV25%, FEF25%, FEF75%, FEF75-85%, FET25-75%, FET100, FIV1, FIV1/FVC, PIF, MTT, MVV Ind, Lung age
• MVV: MVV, Br./min
• Bronchoconstriction: FVC, FEV1, PEF, FEF25-75%, PDX
• Relaxed Parameters Measured VC: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt
• Maneuvers per patient: 8 Total; Best test and last test highlighted
• Interpretation: Selectable – Kory, Miller, ATS, NLHEP (Ferguson)
• Predicted Sets: Selectable – 20 Total
• Ethnic Correction: Selectable – % Actual, Caucasian, Hispanic, African-American
• Language: Selectable – English, Spanish or French
• Measurement Scale (BTPS) Flow range: 0–16 L/sec
• Volume: 0–10 L
• Measurement method: Infrared Interruption via Digital Turbine
• Dynamic flow resistance: <1.5 cm H20/L/sec @ 14 L/sec
• Measurement Precision (BTPS) At Highest Volume: +/- 3% or 50 ml
• At Highest Flow: +/- 5% or 150 ml
• Time Related Precision: 0.5%
• Volume Resolution: <6 ml
• Sampling Frequency: 100 H

Benefits:

• AccuFlo Digital Turbine: The AccuFlo bidirectional turbine with optoelectronic rotary sensor is easily detached for cleaning. Sapphire bearings ensure optimal performance for the life of the turbine. AccuFlo has a unique flow trigger algorithm that allows tidal breathing prior to the patient expiratory effort making the spirometry test easier for the patient and insuring quality test results
• AstraPro Software: Choose either Pre- and Post-bronchodilator and bronchial challenge testing or use the incentive program with your pediatric patients or adults. The Astra BT communicates with AstraPro wirelessly via Bluetooth
