Tapmaster - Model 1780 Standard Floor Activator
- Products Model: 1780
- Product Brand: Tapmaster, Inc.
- Condition: New
- Warranty: 5 Years
Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here.

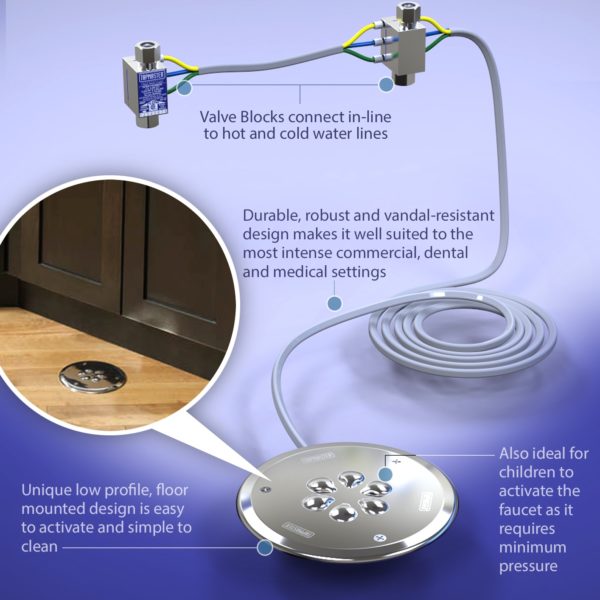

Our newest foot operated faucet activator, the Model 1780, provides a revolutionary new way to activate your faucet. Its unique low profile, floor mounted design is easy to activate and simple to clean. Stepping on the activator initiates water flow and stepping off stops water flow. The floor activator requires very little pressure to function properly making it ideal for use in residential or commercial settings where small children need to be able to activate the faucet. However the durable and vandal proof design makes it equally well suited to the most intense commercial, dental and medical settings where ease of use and robustness is of the utmost concern. The Model 1780 is intended to be used in situations that prevent other models from being implemented such as pedestal and wall-hung sinks but is equally at home anywhere you can think of putting it!
In-line valve blocks are precision machined, chrome plated solid brass, featuring smooth shut off, crossflow prevention, as well as main water flow screening and control circuit filtration.
With the available Surface Mount Kit Number 8030 the Model 1780 can easily be installed in any location as this provides a solution for finished floors.
|Pressure||Operating||0 to 125 psi (862 kpa) maximum|
|Static Burst Rating||700 psi (4,830 kpa) for complete assembly|
|Flow||Both Valve Blocks||7.2 gpm @ 60 psi (27.01/m @ 4 bar)|
|Connections – Valve Blocks||Inlet||Integrated 3/8" compression nut "O" ring seal|
|Outlet||Nut and sleeve, 3/8" compression|
|Filtration||Control Circuit||25 micron|
|Main Port||Greater than .060" (1.5 mm)|
|Construction||Valve Bodies||Chrome plated brass|
|Seals||Silicone or E.P.D.M.|
|Control Tubing||1/8" O.D. 3 tube bundle (high density polyurethane)|
|Kick Plate (1740 & 1750 Series)||18g #4 brushed stainless steel top, aluminum base|
|Foot Pedal (1760 Series)||18g #4 brushed stainless steel|
|Euro (1770 Series)||Brushed nickel plated brass housing; stainless steel mechanism, polyurethane probe|
|Floor Activators (1780 Series)||304 stainless steel laminate, polyurethane buttons, stainless steel hardware|
|Dimensions||Valve Block (less tube fittings)||2.5" x .88" x 1.25" (6.35 x 2.24 x 3.18 cm)|
|Button Valve Fittings||.63" x .63" x 1.0" (1.60 x 1.60 x 2.54 cm)|
|Kick Plate (1740 & 1750 Series)||8.0"w x 3.42"h x 1.14"d (20.32 x 8.64 x 2.90 cm)|
|Floor Foot Pedal (1760 Series)||7.1"w x 3.0"h x 1.1"d (18 x 7.6 x 2.8 cm)|
|Euro (1770 Series)||1.19"w x 4.92"h x 1.37"d (3.0 x 12.5 x 3.5 cm)|
|Floor Activators (1780 Series)||5.65" diameter disc (14.35 cm)|
