Tapmaster - Model 1778 Combination Euro Foot and Cabinet Door Activator


448.20 448.2 USD 498.00


Not Available For Sale

    This combination does not exist.

    Product Information:

    • Products Model: 1778
    • Product Brand: Tapmaster, Inc.
    • Condition: New
    • Warranty: 5 Years

    Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here.

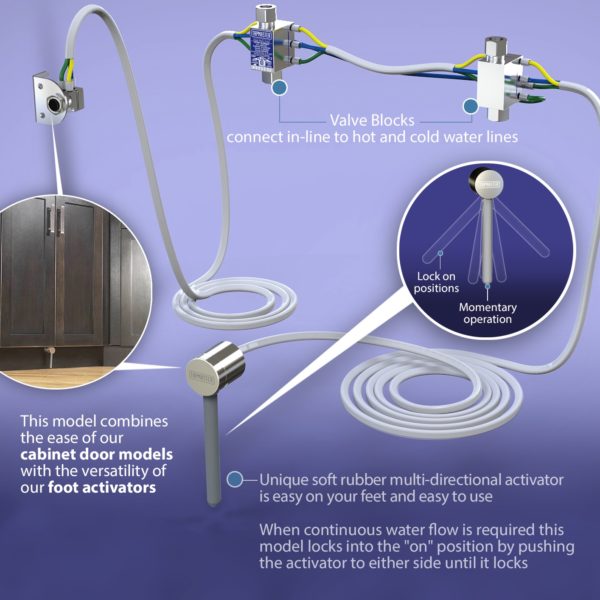

    Combine the ease of our cabinet door models with the versatility of our foot activators.

    Model 1778 combination Euro foot activator and cabinet door activator. Combine the ease of our cabinet door models with the versatility of our foot activators! Its unique soft rubber multi-directional activator is easy on your feet and easy to use no matter what angle you are approaching your sink. Simply press the activator in any direction to activate water flow. In addition, the Model 1778 may be locked into the "on" position by pushing the activator to either side until it locks. Because of the locking feature, this model is perfect for situations where continuous water flow is required such as in a home kitchen. The Euro activator requires a very light touch making it well suited to use with bare feet. However its durable design makes it equally well suited to commercial, dental and medical settings where ease of use and hygiene is of the utmost concern. As one of our most versatile units, it may also be installed in unique situations such as island cabinetry where having the ability to activate the faucet from both sides of the cabinet is important.

    In-line valve blocks are precision machined, chrome plated solid brass, featuring smooth shut off, crossflow prevention, as well as main water flow screening and control circuit filtration.

    Pressure Operating 0 to 125 psi (862 kpa) maximum
    Static Burst Rating 700 psi (4,830 kpa) for complete assembly
    Flow Both Valve Blocks 7.2 gpm @ 60 psi (27.01/m @ 4 bar)
    Connections – Valve Blocks Inlet Integrated 3/8" compression nut "O" ring seal
    Outlet Nut and sleeve, 3/8" compression
    Filtration Control Circuit 25 micron
    Main Port Greater than .060" (1.5 mm)
    Construction Valve Bodies Chrome plated brass
    Seals Silicone or E.P.D.M.
    Control Tubing 1/8" O.D. 3 tube bundle (high density polyurethane)
    Kick Plate (1740 & 1750 Series) 18g #4 brushed stainless steel top, aluminum base
    Foot Pedal (1760 Series) 18g #4 brushed stainless steel
    Euro (1770 Series) Brushed nickel plated brass housing; stainless steel mechanism, polyurethane probe
    Floor Activators (1780 Series) 304 stainless steel laminate, polyurethane buttons, stainless steel hardware
    Dimensions Valve Block (less tube fittings) 2.5" x .88" x 1.25" (6.35 x 2.24 x 3.18 cm)
    Button Valve Fittings .63" x .63" x 1.0" (1.60 x 1.60 x 2.54 cm)
    Kick Plate (1740 & 1750 Series) 8.0"w x 3.42"h x 1.14"d (20.32 x 8.64 x 2.90 cm)
    Floor Foot Pedal (1760 Series) 7.1"w x 3.0"h x 1.1"d (18 x 7.6 x 2.8 cm)
    Euro (1770 Series) 1.19"w x 4.92"h x 1.37"d (3.0 x 12.5 x 3.5 cm)
    Floor Activators (1780 Series) 5.65" diameter disc (14.35 cm)
