Tapmaster - Model 1775 Euro Foot Activator with Continuous Flow Option
- Products Model: 1775
- Product Brand: Tapmaster, Inc.
- Condition: New
- Warranty: 5 Years
Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here.

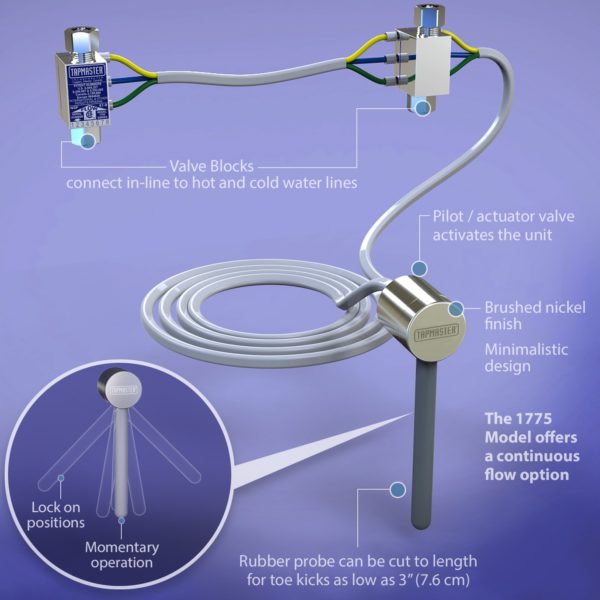

The Model 1775 Euro locking foot activator offers the same innovative and simplistic design to activate your faucet with the added feature of continuous flow. Its unique soft rubber multi-directional activator is easy on your feet and easy to use no matter what angle you are approaching your sink. Simply press the activator in any direction. In addition, the Model 1775 may be locked into the "on" position by pushing the activator to either side until it locks. The Euro activator requires a very light touch making it well suited to use with bare feet. However its durable design makes it equally well suited to commercial, dental and medical settings where ease of use and hygiene is of the utmost concern. Because of the locking feature, this model is at home in situations where continuous water flow is required such as in a kitchen. The locking feature has been intentionally designed to require a deliberate thoughtful motion on the part of the operator to prevent locking inadvertently. This also allows you to use the faucet as you did before you installed the Tapmaster®although we guarantee once you to become accustomed the convenience of your new Tapmaster®, you will rarely want to use your tap the "old way".
In-line valve blocks are precision machined, chrome plated solid brass, featuring smooth shut off, crossflow prevention, as well as main water flow screening and control circuit filtration.
|Pressure||Operating||0 to 125 psi (862 kpa) maximum|
|Static Burst Rating||700 psi (4,830 kpa) for complete assembly|
|Flow||Both Valve Blocks||7.2 gpm @ 60 psi (27.01/m @ 4 bar)|
|Connections – Valve Blocks||Inlet||Integrated 3/8" compression nut "O" ring seal|
|Outlet||Nut and sleeve, 3/8" compression|
|Filtration||Control Circuit||25 micron|
|Main Port||Greater than .060" (1.5 mm)|
|Construction||Valve Bodies||Chrome plated brass|
|Seals||Silicone or E.P.D.M.|
|Control Tubing||1/8" O.D. 3 tube bundle (high density polyurethane)|
|Kick Plate (1740 & 1750 Series)||18g #4 brushed stainless steel top, aluminum base|
|Foot Pedal (1760 Series)||18g #4 brushed stainless steel|
|Euro (1770 Series)||Brushed nickel plated brass housing; stainless steel mechanism, polyurethane probe|
|Floor Activators (1780 Series)||304 stainless steel laminate, polyurethane buttons, stainless steel hardware|
|Dimensions||Valve Block (less tube fittings)||2.5" x .88" x 1.25" (6.35 x 2.24 x 3.18 cm)|
|Button Valve Fittings||.63" x .63" x 1.0" (1.60 x 1.60 x 2.54 cm)|
|Kick Plate (1740 & 1750 Series)||8.0"w x 3.42"h x 1.14"d (20.32 x 8.64 x 2.90 cm)|
|Floor Foot Pedal (1760 Series)||7.1"w x 3.0"h x 1.1"d (18 x 7.6 x 2.8 cm)|
|Euro (1770 Series)||1.19"w x 4.92"h x 1.37"d (3.0 x 12.5 x 3.5 cm)|
|Floor Activators (1780 Series)||5.65" diameter disc (14.35 cm)|
