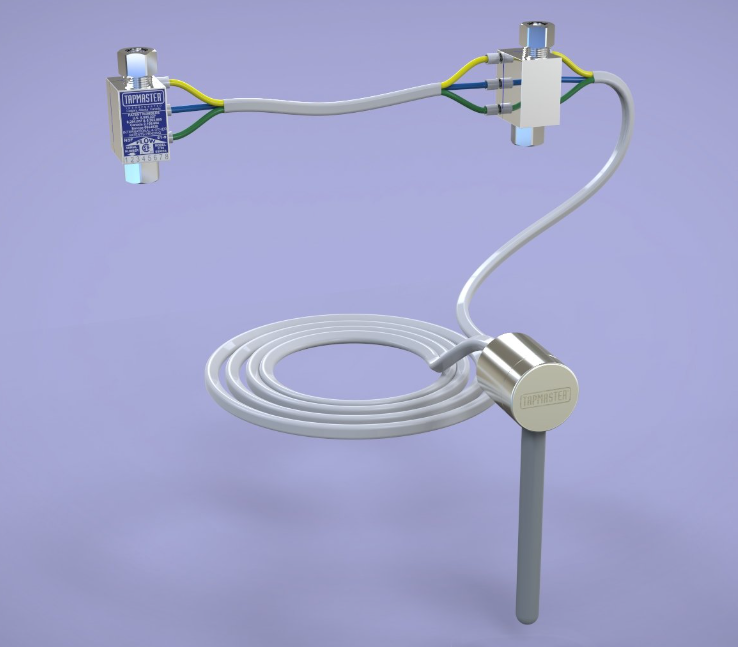

Tapmaster - Model 1770 Momentary Euro Foot Activator


327.60 327.6 USD 364.00


Not Available For Sale

    This combination does not exist.

    Product Information:

    • Products Model: 1770
    • Product Brand: Tapmaster, Inc.
    • Condition: New
    • Warranty: 5 Years

    Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here.

    The Model 1770 Euro foot activator provides an innovative and simplistic design to activate your faucet for momentary use. Its unique soft rubber multi-directional activator is easy on your feet and easy to use no matter what angle you are approaching your sink. Simply press the activator in any direction to activate water flow on and release it to stop the water. The Euro activator requires a very light touch making it well suited to use with bare feet. However its durable design makes it equally well suited to commercial, dental and medical settings where ease of use and hygiene is of the utmost concern.

    In-line valve blocks are precision machined, chrome plated solid brass, featuring smooth shut off, crossflow prevention, as well as main water flow screening and control circuit filtration.


    0 to 125 psi (862 kpa) maximum

    Static Burst Rating
    700 psi (4,830 kpa) for complete assembly
    Both Valve Blocks
    7.2 gpm @ 60 psi (27.01/m @ 4 bar)
    Connections – Valve Blocks
    Integrated 3/8" compression nut "O" ring seal

    Nut and sleeve, 3/8" compression
    Control Circuit
    25 micron

    Main Port
    Greater than .060" (1.5 mm)
    Valve Bodies
    Chrome plated brass

    Silicone or E.P.D.M.

    Control Tubing
    1/8" O.D. 3 tube bundle (high density polyurethane)

    Kick Plate (1740 & 1750 Series)
    18g #4 brushed stainless steel top, aluminum base

    Foot Pedal (1760 Series)
    18g #4 brushed stainless steel

    Euro (1770 Series)
    Brushed nickel plated brass housing; stainless steel mechanism, polyurethane probe

    Floor Activators (1780 Series)
    304 stainless steel laminate, polyurethane buttons, stainless steel hardware
    Valve Block (less tube fittings)
    2.5" x .88" x 1.25" (6.35 x 2.24 x 3.18 cm)

    Button Valve Fittings
    .63" x .63" x 1.0" (1.60 x 1.60 x 2.54 cm)

    Kick Plate (1740 & 1750 Series)
    8.0"w x 3.42"h x 1.14"d (20.32 x 8.64 x 2.90 cm)

    Floor Foot Pedal (1760 Series)
    7.1"w x 3.0"h x 1.1"d (18 x 7.6 x 2.8 cm)

    Euro (1770 Series)
    1.19"w x 4.92"h x 1.37"d (3.0 x 12.5 x 3.5 cm)

    Floor Activators (1780 Series)
    5.65" diameter disc (14.35 cm)
