Tapmaster -Model 1720 Cabinet Door Faucet Activator
Product Information:
- Products Model: 1720
- Product Brand: Tapmaster, Inc.
- Condition: New
- Warranty: 5 Years
Product images shown are for illustration purposes only and may not be an exact representation of the product. If you have questions regarding product images click here. The shipping cost provided is an estimate. Actual shipping and handling costs may vary based on the destination, logistics, supply chain challenges, and other shipment requirements. The actual shipping cost will be added to the final invoice.

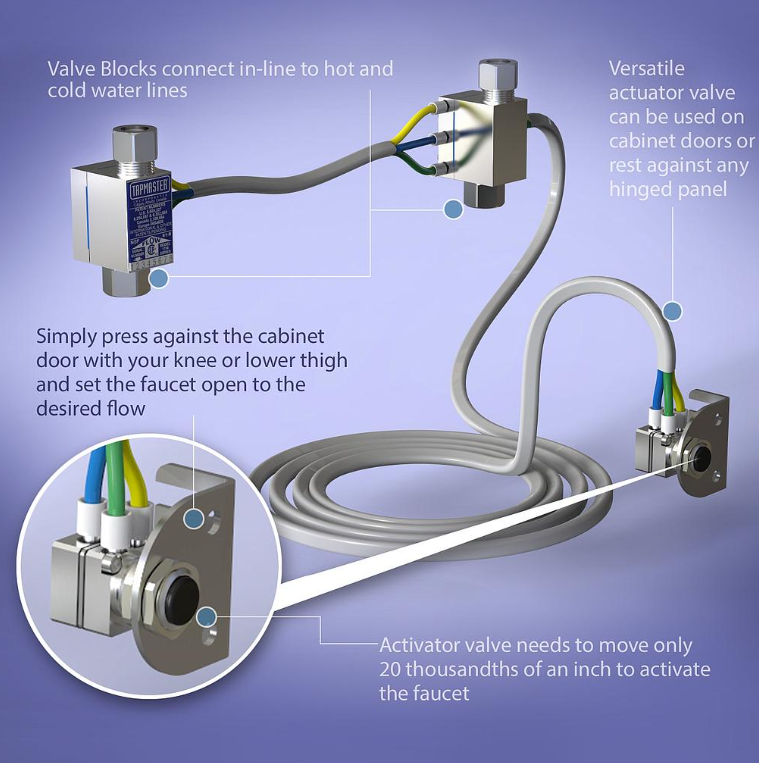

The Model 1720 cabinet door activator is our simplest and most affordable hands-free faucet solution. Its high precision activator valve needs to move only 20 thousandths of an inch to activate your faucet. This means that when it is installed it is nearly impossible to detect with the cabinet door closed. To operate the Tapmaster® simply press against the cabinet door with your knee or leg and set the faucet open to the desired flow and temperature. By releasing the door, the Tapmaster® shuts off the water flow making this model ideal for situations where your faucet only needs to be activated for brief periods.
The activator does not necessarily have to be a door. The possibilities are only limited by the hardware available and the imagination of the installer. Any surface or panel where a slight movement (approximately 1/32") can be created and can be pressed by the knee, leg or hip has the potential to be a hands-free activator. As an example, in the public washroom drop-in counter sinks, the Tapmaster® actuator valve rests against a hinged panel with a towel or grab bar mounted on it. Simply a light push of the bar with the upper knee or lower thigh area activates the water flow releasing the bar stops it.
In-line valve blocks are precision machined, chrome plated solid brass, featuring smooth shut off, crossflow prevention, as well as main water flow screening and control circuit filtration.
Specifications
Pressure | Operating | 0 to 125 psi (862 kpa) maximum |
Static Burst Rating | 700 psi (4,830 kpa) for complete assembly | |
Flow | Both Valve Blocks | 7.2 gpm @ 60 psi (27.01/m @ 4 bar) |
Connections – Valve Blocks | Inlet | Integrated 3/8" compression nut "O" ring seal |
Outlet | Nut and sleeve, 3/8" compression | |
Filtration | Control Circuit | 25 micron |
Main Port | Greater than .060" (1.5 mm) | |
Construction | Valve Bodies | Chrome plated brass |
Seals | Silicone or E.P.D.M. | |
Control Tubing | 1/8" O.D. 3 tube bundle (high density polyurethane) | |
Kick Plate (1740 & 1750 Series) | 18g #4 brushed stainless steel top, aluminum base | |
Foot Pedal (1760 Series) | 18g #4 brushed stainless steel | |
Euro (1770 Series) | Brushed nickel plated brass housing; stainless steel mechanism, polyurethane probe | |
Floor Activators (1780 Series) | 304 stainless steel laminate, polyurethane buttons, stainless steel hardware | |
Dimensions | Valve Block (less tube fittings) | 2.5" x .88" x 1.25" (6.35 x 2.24 x 3.18 cm) |
Button Valve Fittings | .63" x .63" x 1.0" (1.60 x 1.60 x 2.54 cm) | |
Kick Plate (1740 & 1750 Series) | 8.0"w x 3.42"h x 1.14"d (20.32 x 8.64 x 2.90 cm) | |
Floor Foot Pedal (1760 Series) | 7.1"w x 3.0"h x 1.1"d (18 x 7.6 x 2.8 cm) | |
Euro (1770 Series) | 1.19"w x 4.92"h x 1.37"d (3.0 x 12.5 x 3.5 cm) | |
Floor Activators (1780 Series) | 5.65" diameter disc (14.35 cm) |
